You have an Azure subscription. The subscription contains 10 virtual machines that run Windows Server. Each virtual machine hosts a website in IIS and has the Azure Monitor Agent installed.

You need to collect the IIS logs from each virtual machine and store them in a Log Analytics workspace.

What should you configure first?

HOTSPOT
-

You have an Azure subscription that contains two storage accounts named contoso101 and contoso102.

The subscription contains the virtual machines shown in the following table.

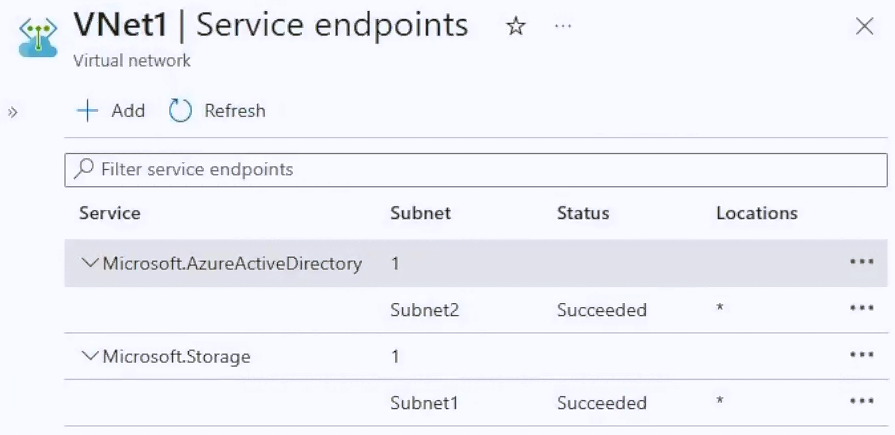

VNet1 has service endpoints configured as shown in the Service endpoints exhibit. (Click the Service endpoints tab.)

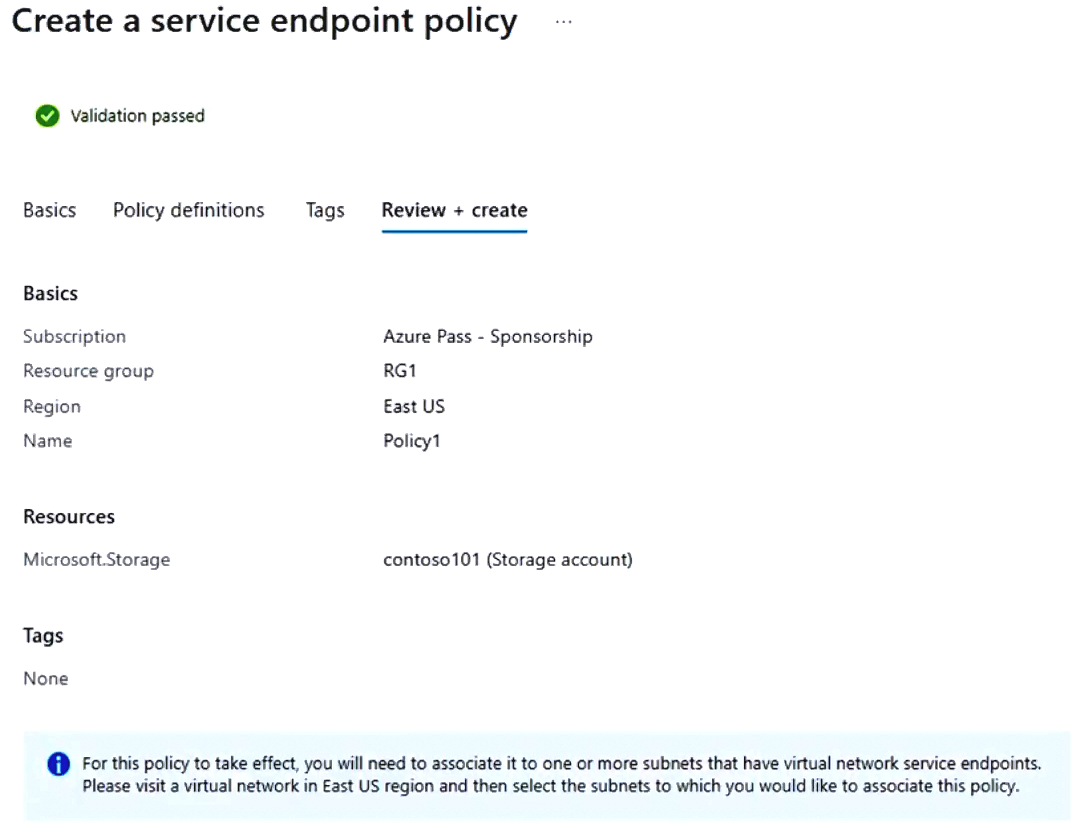

The Microsoft.Storage service endpoint has the service endpoint policy shown in the Microsoft.Storage exhibit. (Click the Microsoft.Storage tab.)

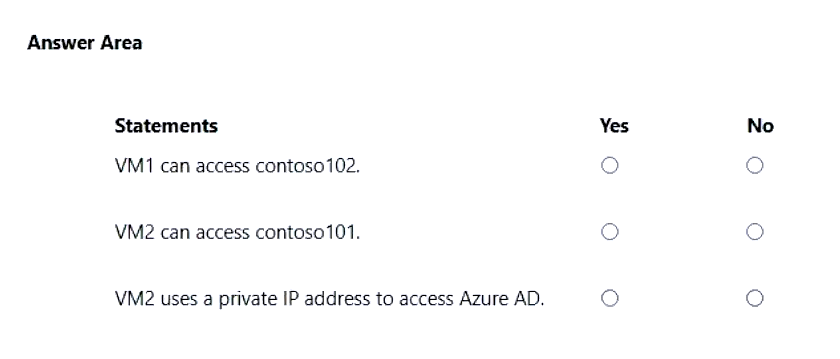

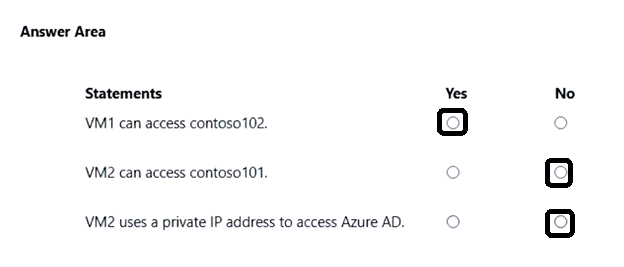

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Correct Answer:

HOTSPOT
-

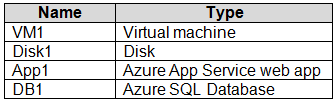

You have an Azure subscription that contains an Azure Backup vault named Backup1, a Recovery Services vault named Recovery1, and the resources shown in the following table.



You plan to back up the resources.

Which resource can be backed up to Backup1, and which resource can be backed up to Recovery1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:

HOTSPOT
-


Case study
-

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.


To start the case study
-
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.


Overview
-

ADatum Corporation is consulting firm that has a main office in Montreal and branch offices in Seattle and New York.


Existing Environment
-


Azure Environment
-

ADatum has an Azure subscription that contains three resource groups named RG1, RG2, and RG3.

The subscription contains the storage accounts shown in the following table.

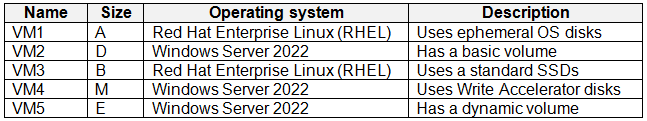

The subscription contains the virtual machines shown in the following table.



The subscription has an Azure container registry that contains the images shown in the following table.

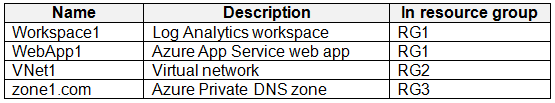

The subscription contains the resources shown in the following table.




Azure Key Vault
-

The subscription contains an Azure key vault named Vault1.

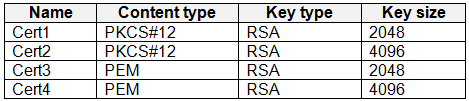

Vault1 contains the certificates shown in the following table.



Vault1 contains the keys shown in the following table.




Microsoft Entra Environment
-

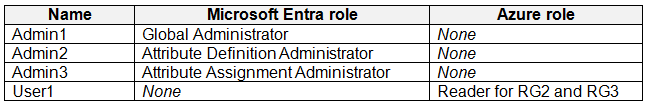

ADatum has a Microsoft Entra tenant named adatum.com that is linked to the Azure subscription and contains the users shown in the following table.



The tenant contains the groups shown in the following table.



The adatum.com tenant has a custom security attribute named Attribute1.


Planned Changes
-

ADatum plans to implement the following changes:

•Configure a data collection rule (DCR) named DCR1 to collect only system events that have an event ID of 4648 from VM2 and VM4.
•In storage1, create a new container named cont2 that has the following access policies:
oThree stored access policies named Stored1, Stored2, and Stored3
oA legal hold for immutable blob storage
•Whenever possible, use directories to organize storage account content.
•Grant User1 the permissions required to link Zone1 to VNet1.
•Assign Attribute1 to supported adatum.com resources.
•In storage2, create an encryption scope named Scope1.
•Deploy new containers by using Image1 or Image2.


Technical Requirements
-

ADatum must meet the following technical requirements:

•Use TLS for WebApp1.
•Follow the principle of least privilege.
•Grant permissions at the required scope only.
•Ensure that Scope1 is used to encrypt storage services.
•Use Azure Backup to back up cont1 and share1 as frequently as possible.
•Whenever possible, use Azure Disk Encryption and a key encryption key (KEK) to encrypt the virtual machines.


You need to configure Azure Backup to meet the technical requirements for cont1 and share1.

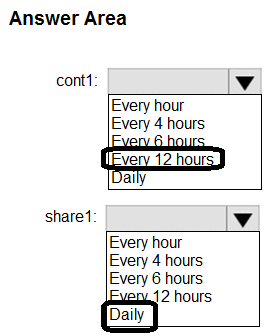

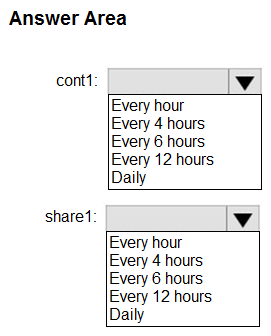

To what should you set the backup frequency for each resource? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:

Introductory Info Case study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study -
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Overview -
Contoso, Ltd. is a manufacturing company that has offices worldwide. Contoso works with partner organizations to bring products to market.
Contoso products are manufactured by using blueprint files that the company authors and maintains.

Existing Environment -
Currently, Contoso uses multiple types of servers for business operations, including the following:
File servers
Domain controllers
Microsoft SQL Server servers
Your network contains an Active Directory forest named contoso.com. All servers and client computers are joined to Active Directory.
You have a public-facing application named App1. App1 is comprised of the following three tiers:
A SQL database
A web front end

A processing middle tier -

Each tier is comprised of five virtual machines. Users access the web front end by using HTTPS only.

Requirements -

Planned Changes -
Contoso plans to implement the following changes to the infrastructure:
Move all the tiers of App1 to Azure.
Move the existing product blueprint files to Azure Blob storage.
Create a hybrid directory to support an upcoming Microsoft 365 migration project.

Technical Requirements -
Contoso must meet the following technical requirements:
Move all the virtual machines for App1 to Azure.
Minimize the number of open ports between the App1 tiers.
Ensure that all the virtual machines for App1 are protected by backups.
Copy the blueprint files to Azure over the Internet.
Ensure that the blueprint files are stored in the archive storage tier.
Ensure that partner access to the blueprint files is secured and temporary.
Prevent user passwords or hashes of passwords from being stored in Azure.
Use unmanaged standard storage for the hard disks of the virtual machines.
Ensure that when users join devices to Azure Active Directory (Azure AD), the users use a mobile phone to verify their identity.
Minimize administrative effort whenever possible.

User Requirements -
Contoso identifies the following requirements for users:
Ensure that only users who are part of a group named Pilot can join devices to Azure AD.
Designate a new user named Admin1 as the service admin for the Azure subscription.
Admin1 must receive email alerts regarding service outages.
Ensure that a new user named User3 can create network objects for the Azure subscription. Question HOTSPOT -

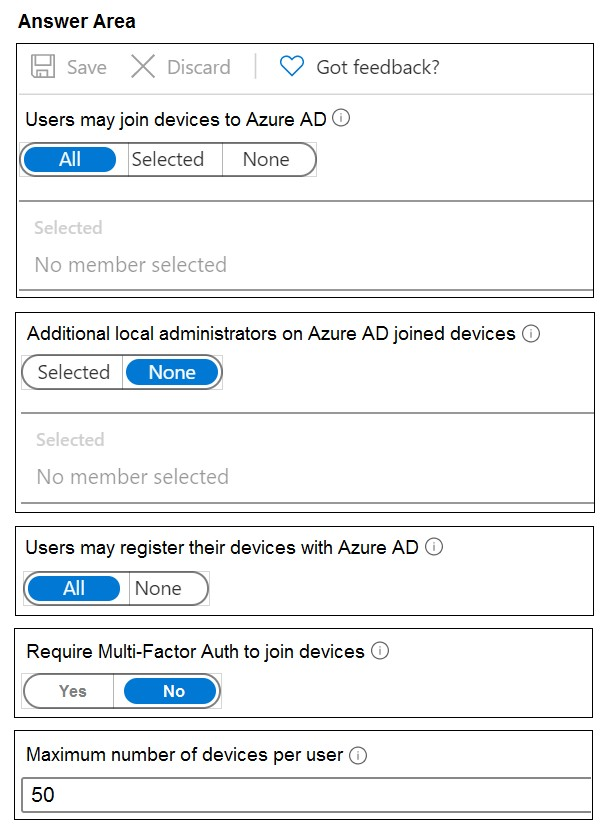

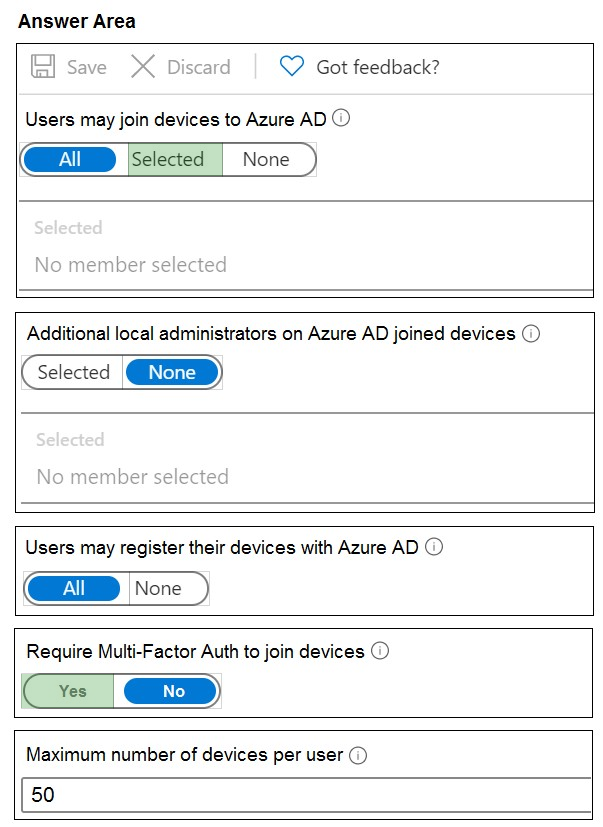

You need to configure the Device settings to meet the technical requirements and the user requirements.
Which two settings should you modify? To answer, select the appropriate settings in the answer area.
Hot Area:

Correct Answer:

Box 1: Selected -
Only selected users should be able to join devices

Box 2: Yes -
Ensure that when users join devices to Azure Active Directory (Azure AD), the users use a mobile phone to verify their identity.
