Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure virtual machine named VM1. VM1 was deployed by using a custom Azure Resource Manager template named ARM1.json.

You receive a notification that VM1 will be affected by maintenance.

You need to move VM1 to a different host immediately.

Solution: From the VM1 Redeploy + reapply blade, you select Redeploy.

Does this meet the goal?

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure virtual machine named VM1. VM1 was deployed by using a custom Azure Resource Manager template named ARM1.json.

You receive a notification that VM1 will be affected by maintenance.

You need to move VM1 to a different host immediately.

Solution: From the VM1 Updates blade, select One-time update.

Does this meet the goal?

Case study -

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.


To start the case study -
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.


Overview -

ADatum Corporation is consulting firm that has a main office in Montreal and branch offices in Seattle and New York.


Existing Environment -


Azure Environment -

ADatum has an Azure subscription that contains three resource groups named RG1, RG2, and RG3.

The subscription contains the storage accounts shown in the following table.

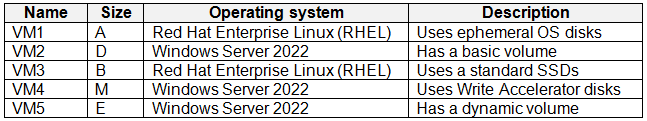

The subscription contains the virtual machines shown in the following table.



The subscription has an Azure container registry that contains the images shown in the following table.

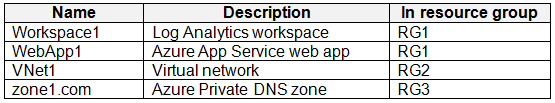

The subscription contains the resources shown in the following table.




Azure Key Vault -

The subscription contains an Azure key vault named Vault1.

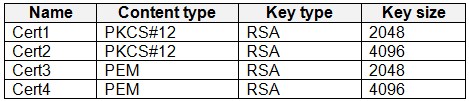

Vault1 contains the certificates shown in the following table.



Vault1 contains the keys shown in the following table.




Microsoft Entra Environment -

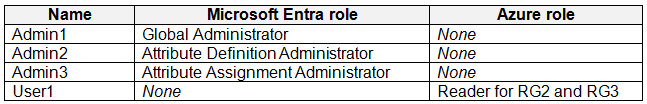

ADatum has a Microsoft Entra tenant named adatum.com that is linked to the Azure subscription and contains the users shown in the following table.



The tenant contains the groups shown in the following table.



The adatum.com tenant has a custom security attribute named Attribute1.


Planned Changes -

ADatum plans to implement the following changes:

•Configure a data collection rule (DCR) named DCR1 to collect only system events that have an event ID of 4648 from VM2 and VM4.
•In storage1, create a new container named cont2 that has the following access policies: oThree stored access policies named Stored1, Stored2, and Stored3 oA legal hold for immutable blob storage
•Whenever possible, use directories to organize storage account content.
•Grant User1 the permissions required to link Zone1 to VNet1.
•Assign Attribute1 to supported adatum.com resources.
•In storage2, create an encryption scope named Scope1.
•Deploy new containers by using Image1 or Image2.


Technical Requirements -

ADatum must meet the following technical requirements:

•Use TLS for WebApp1.
•Follow the principle of least privilege.
•Grant permissions at the required scope only.
•Ensure that Scope1 is used to encrypt storage services.
•Use Azure Backup to back up cont1 and share1 as frequently as possible.
•Whenever possible, use Azure Disk Encryption and a key encryption key (KEK) to encrypt the virtual machines.


You need to meet the technical requirements for the KEK.

Which PowerShell cmdlet and key should you use?

HOTSPOT -
You have an Azure subscription named Sub1.

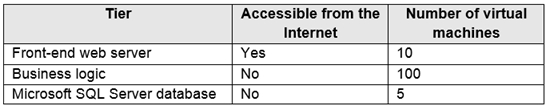

You plan to deploy a multi-tiered application that will contain the tiers shown in the following table.

You need to recommend a networking solution to meet the following requirements:
✑ Ensure that communication between the web servers and the business logic tier spreads equally across the virtual machines.
✑ Protect the web servers from SQL injection attacks.
Which Azure resource should you recommend for each requirement? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

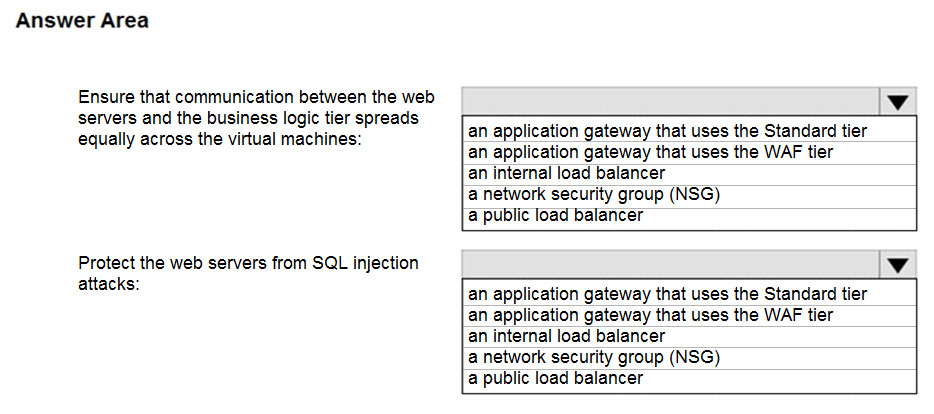

Hot Area:

Correct Answer:

Box 1: an internal load balancer
Azure Internal Load Balancer (ILB) provides network load balancing between virtual machines that reside inside a cloud service or a virtual network with a regional scope.
Box 2: an application gateway that uses the WAF tier
Azure Web Application Firewall (WAF) on Azure Application Gateway provides centralized protection of your web applications from common exploits and vulnerabilities. Web applications are increasingly targeted by malicious attacks that exploit commonly known vulnerabilities.
Reference:
https://docs.microsoft.com/en-us/azure/web-application-firewall/ag/ag-overview

Your company has three offices. The offices are located in Miami, Los Angeles, and New York. Each office contains datacenter.
You have an Azure subscription that contains resources in the East US and West US Azure regions. Each region contains a virtual network. The virtual networks are peered.
You need to connect the datacenters to the subscription. The solution must minimize network latency between the datacenters.
What should you create?
