Your company has an Azure subscription named Subscription1.
The company also has two on-premises servers named Server1 and Server2 that run Windows Server 2016. Server1 is configured as a DNS server that has a primary DNS zone named adatum.com. Adatum.com contains 1,000 DNS records.
You manage Server1 and Subscription1 from Server2. Server2 has the following tools installed:
✑ The DNS Manager console
✑ Azure PowerShell
✑ Azure CLI 2.0
You need to move the adatum.com zone to an Azure DNS zone in Subscription1. The solution must minimize administrative effort.
What should you use?

You have a public load balancer that balances ports 80 and 443 across three virtual machines named VM1, VM2, and VM3.
You need to direct all the Remote Desktop Protocol (RDP) connections to VM3 only.
What should you configure?

HOTSPOT -
You have an Azure subscription named Subscription1 that contains the virtual networks in the following table.

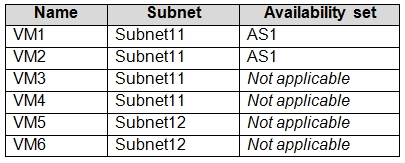

Subscription1 contains the virtual machines in the following table.

In Subscription1, you create a load balancer that has the following configurations:
✑ Name: LB1
✑ SKU: Basic
✑ Type: Internal
✑ Subnet: Subnet12
✑ Virtual network: VNET1
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

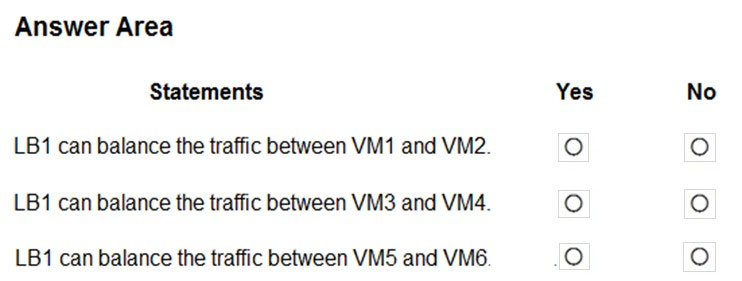

Hot Area:

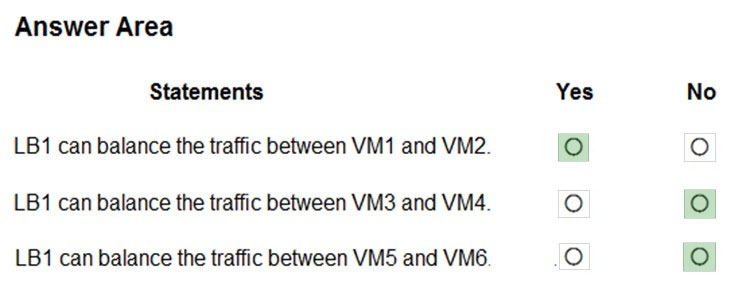

Correct Answer:

Reference:
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-overview

HOTSPOT -
You have an Azure virtual machine that runs Windows Server 2019 and has the following configurations:
✑ Name: VM1
✑ Location: West US
✑ Connected to: VNET1
✑ Private IP address: 10.1.0.4
✑ Public IP addresses: 52.186.85.63
✑ DNS suffix in Windows Server: Adatum.com

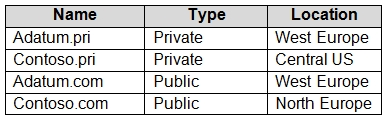

You create the Azure DNS zones shown in the following table.

You need to identify which DNS zones you can link to VNET1 and the DNS zones to which VM1 can automatically register.
Which zones should you identify? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

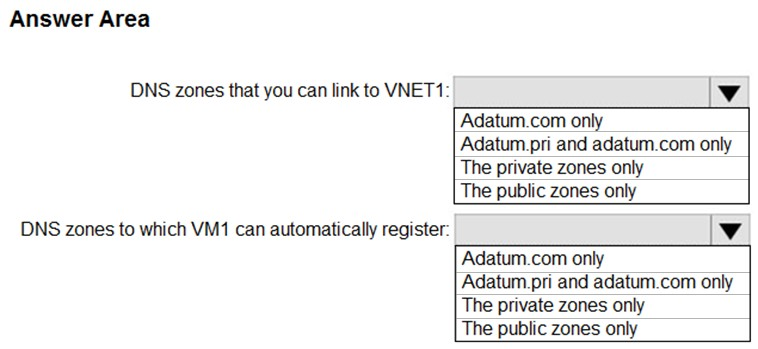

Hot Area:

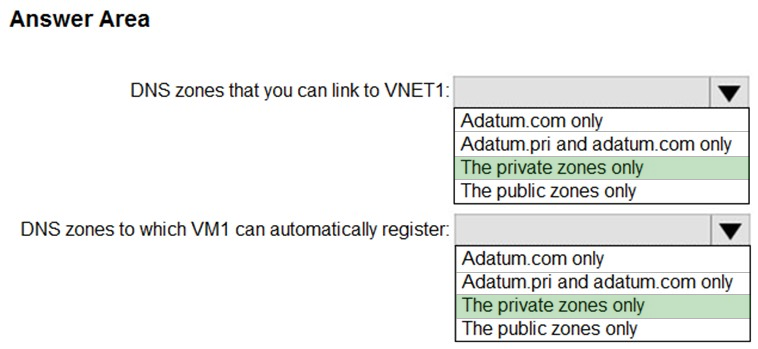

Correct Answer:

Reference:
https://docs.microsoft.com/en-us/azure/dns/private-dns-overview

DRAG DROP -
You have an on-premises network that you plan to connect to Azure by using a site-so-site VPN.
In Azure, you have an Azure virtual network named VNet1 that uses an address space of 10.0.0.0/16 VNet1 contains a subnet named Subnet1 that uses an address space of 10.0.0.0/24.
You need to create a site-to-site VPN to Azure.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
NOTE: More than one order of answer choice is correct. You will receive credit for any of the correct orders you select.

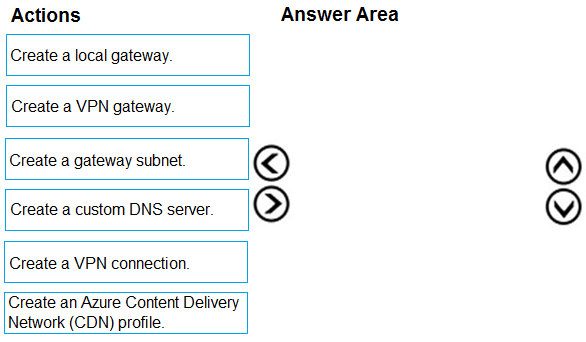

Select and Place:

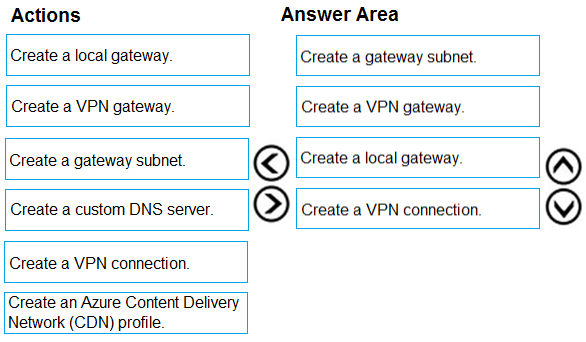

Correct Answer:
