HOTSPOT -

You have an Azure subscription that contains the virtual machines shown in the following table.

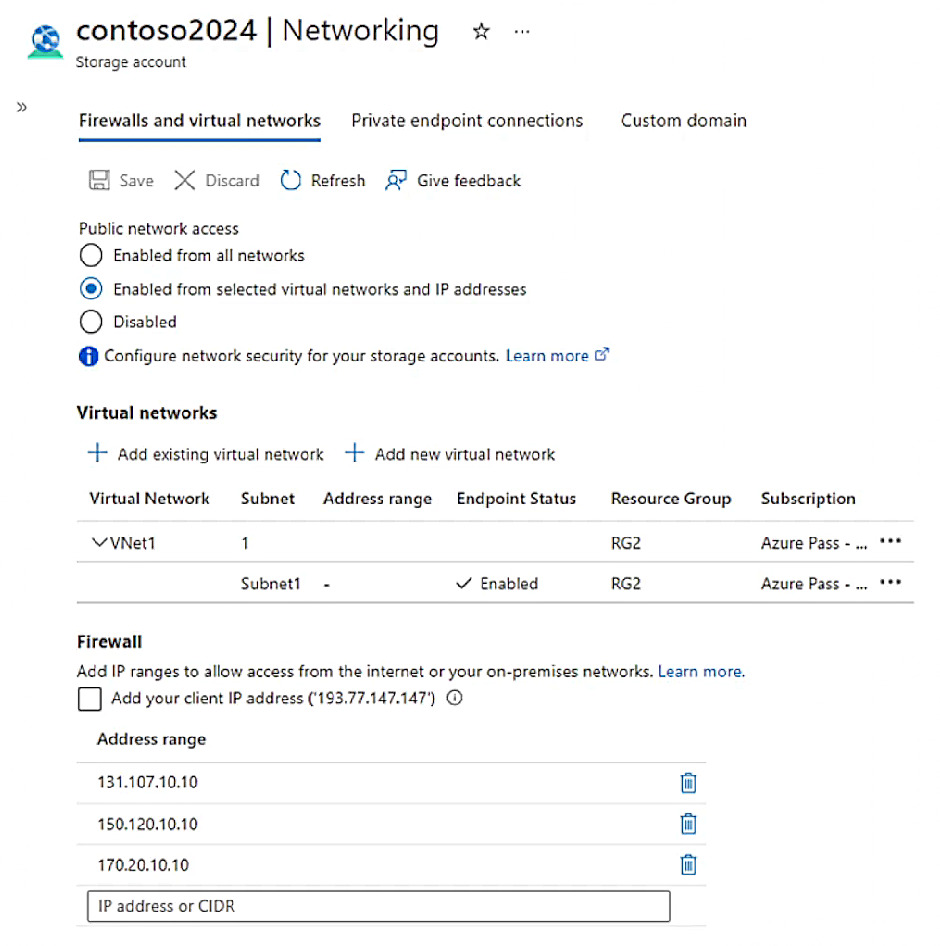

The subscription contains a storage account named contoso2024 as shown in the following exhibit.

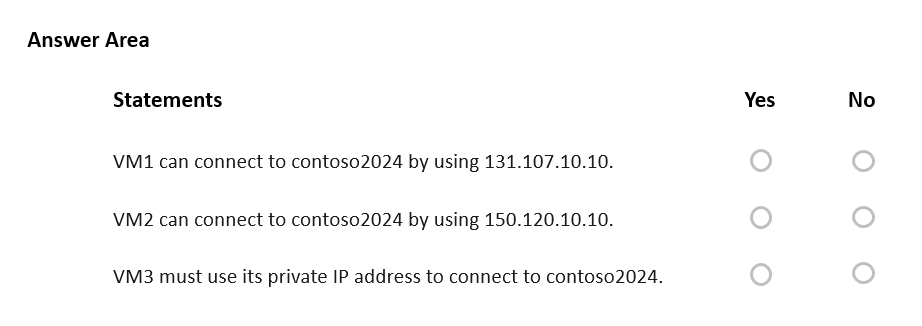

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

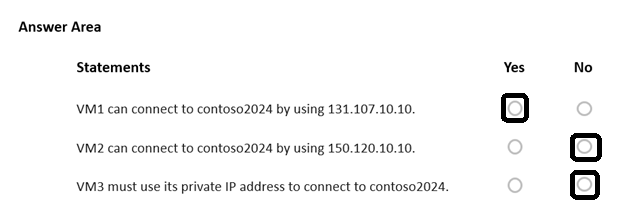

Correct Answer:

HOTSPOT -

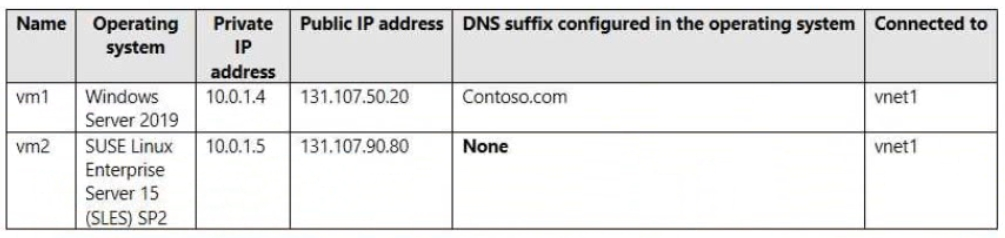

You have two Azure virtual machines as shown in the following table.

You create the Azure DNS zones shown in the following table.

You perform the following actions:
✑ ׀¢׀¾ fabrikam.com, you add a virtual network link to vnet1 and enable auto registration.
✑ For contoso.com, you assign vm1 and vm2 the Owner role.

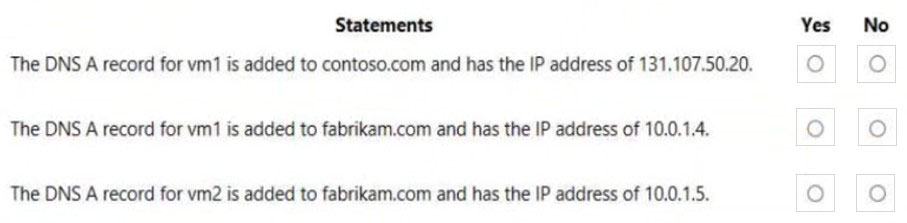

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

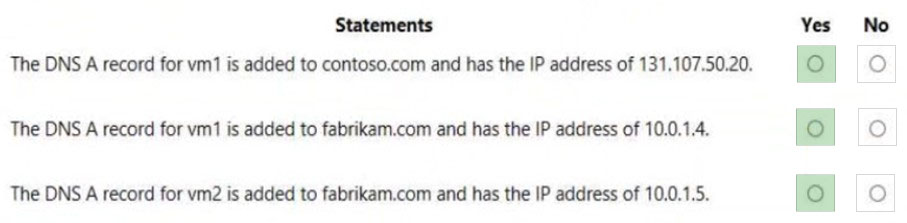

Correct Answer:

Box 1: Yes -
The DNS zone uses the Public IP address of vm1.

Box 2: Yes -
Fabrikam.com is a Private DNS zone. The private IP address is used.
Note: The Azure DNS private zones auto registration feature manages DNS records for virtual machines deployed in a virtual network. When you link a virtual network with a private DNS zone with this setting enabled, a DNS record gets created for each virtual machine deployed in the virtual network.
For each virtual machine, an A record and a PTR record are created. DNS records for newly deployed virtual machines are also automatically created in the linked private DNS zone.
Note: If you use Azure Provided DNS then appropriate DNS suffix will be automatically applied to your virtual machines. For all other options you must either use
Fully Qualified Domain Names (FQDN) or manually apply appropriate DNS suffix to your virtual machines.

Box 3: Yes -
Reference:
https://docs.microsoft.com/en-us/azure/dns/dns-zones-records
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-name-resolution-for-vms-and-role-instances

You have an on-premises datacenter and an Azure subscription.
You plan to connect the datacenter to Azure by using ExpressRoute.
You need to deploy an ExpressRoute gateway. The solution must meet the following requirements:
✑ Support up to 10 Gbps of traffic.
✑ Support availability zones.
✑ Support FastPath.
✑ Minimize costs.
Which SKU should you deploy?

HOTSPOT -
You have a virtual network named VNET1 that contains the subnets shown in the following table:

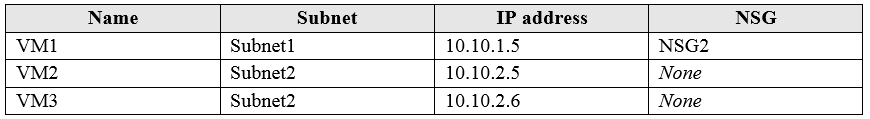

You have Azure virtual machines that have the network configurations shown in the following table:

For NSG1, you create the inbound security rule shown in the following table:

For NSG2, you create the inbound security rule shown in the following table:

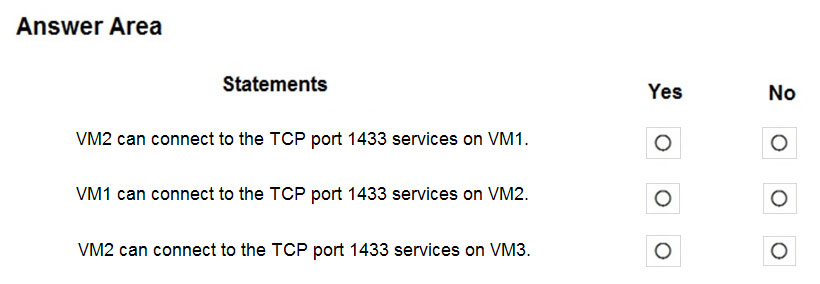

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

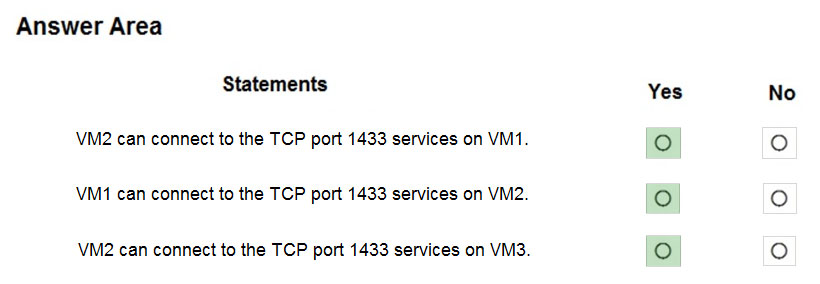

Correct Answer:

Box 1: Yes -
The inbound security rule for NSG1 allows TCP port 1433 from 10.10.2.0/24 (or Subnet2 where VM2 and VM3 are located) to 10.10.1.0/24 (or Subnet1 where
VM1 is located) while the inbound security rule for NSG2 blocks TCP port 1433 from 10.10.2.5 (or VM2) to 10.10.1.5 (or VM1). However, the NSG1 rule has a higher priority (or lower value) than the NSG2 rule.

Box 2: Yes -
No rule explicitly blocks communication from VM1. The default rules, which allow communication, are thus applied.

Box 3: Yes -
No rule explicitly blocks communication between VM2 and VM3 which are both on Subnet2. The default rules, which allow communication, are thus applied.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview

HOTSPOT -
You have an Azure subscription named Subscription1.

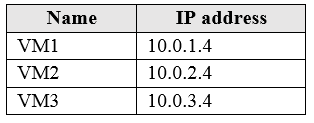

Subscription1 contains the virtual machines in the following table:

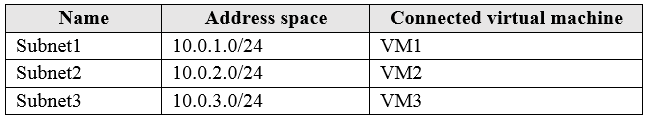

Subscription1 contains a virtual network named VNet1 that has the subnets in the following table:

VM3 has multiple network adapters, including a network adapter named NIC3. IP forwarding is enabled on NIC3. Routing is enabled on VM3.
You create a route table named RT1 that contains the routes in the following table:

You apply RT1 to Subnet1 and Subnet2.

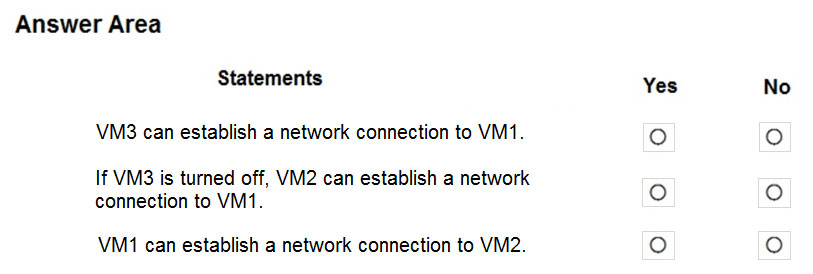

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

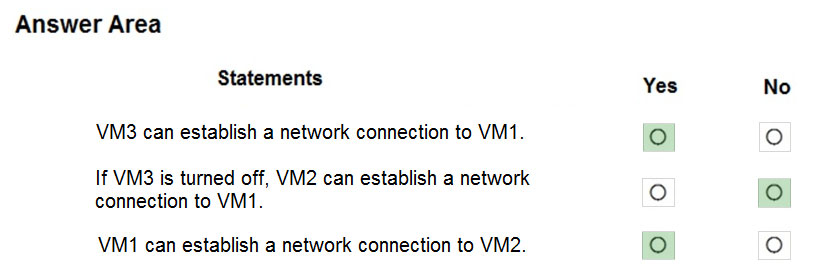

Correct Answer:

IP forwarding enables the virtual machine a network interface is attached to:
✑ Receive network traffic not destined for one of the IP addresses assigned to any of the IP configurations assigned to the network interface.
Send network traffic with a different source IP address than the one assigned to one of a network interface's IP configurations.

The setting must be enabled for every network interface that is attached to the virtual machine that receives traffic that the virtual machine needs to forward. A virtual machine can forward traffic whether it has multiple network interfaces or a single network interface attached to it.

Box 1: Yes -
The routing table allows connections from VM3 to VM1 and VM2. And as IP forwarding is enabled on VM3, VM3 can connect to VM1.

Box 2: No -
VM3, which has IP forwarding, must be turned on, in order for VM2 to connect to VM1.

Box 3: Yes -
The routing table allows connections from VM1 and VM2 to VM3. IP forwarding on VM3 allows VM1 to connect to VM2 via VM3.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-udr-overview https://www.quora.com/What-is-IP-forwarding
