You have an Azure virtual network named Vnet1 that hosts an Azure firewall named FW1 and 150 virtual machines. Vnet1 is linked to a private DNS zone named contoso.com. All the virtual machines have their name registered in the contoso.com zone.
Vnet1 connects to an on-premises datacenter by using ExpressRoute.
You need to ensure that on-premises DNS servers can resolve the names in the contoso.com zone.
Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

You are planning the IP addressing for the subnets in Azure virtual networks.
Which type of resource requires IP addresses in the subnets?

HOTSPOT -
You have an Azure subscription.

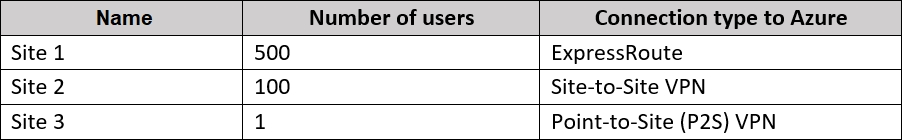

You have the on-premises sites shown the following table.

You plan to deploy Azure Virtual WAN.
You are evaluating Virtual WAN Basic and Virtual WAN Standard.
Which type of Virtual WAN can you use for each site? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

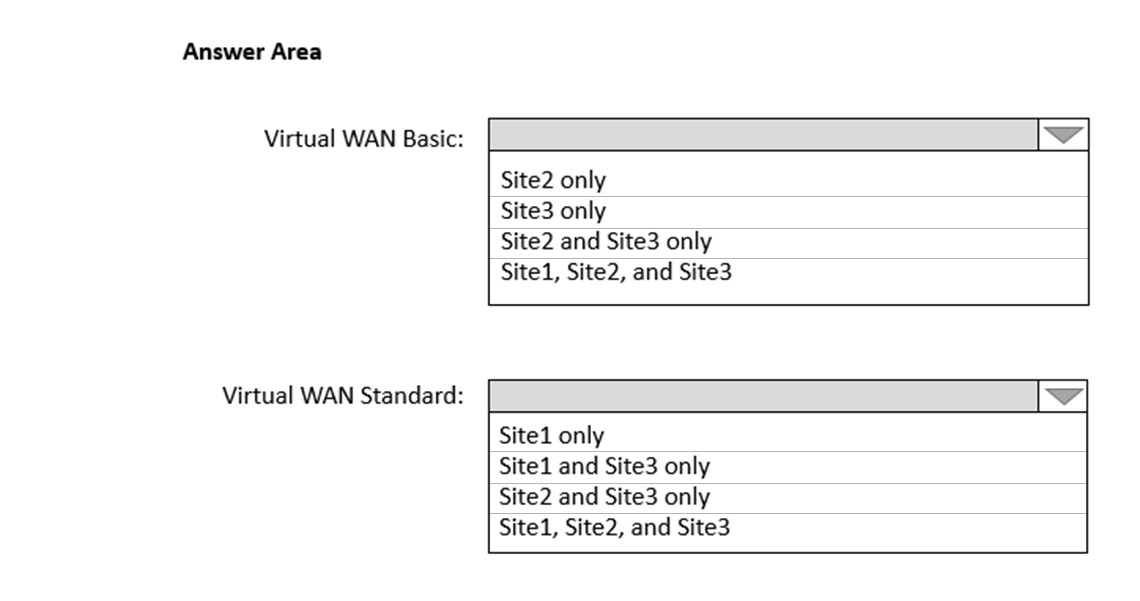

Hot Area:

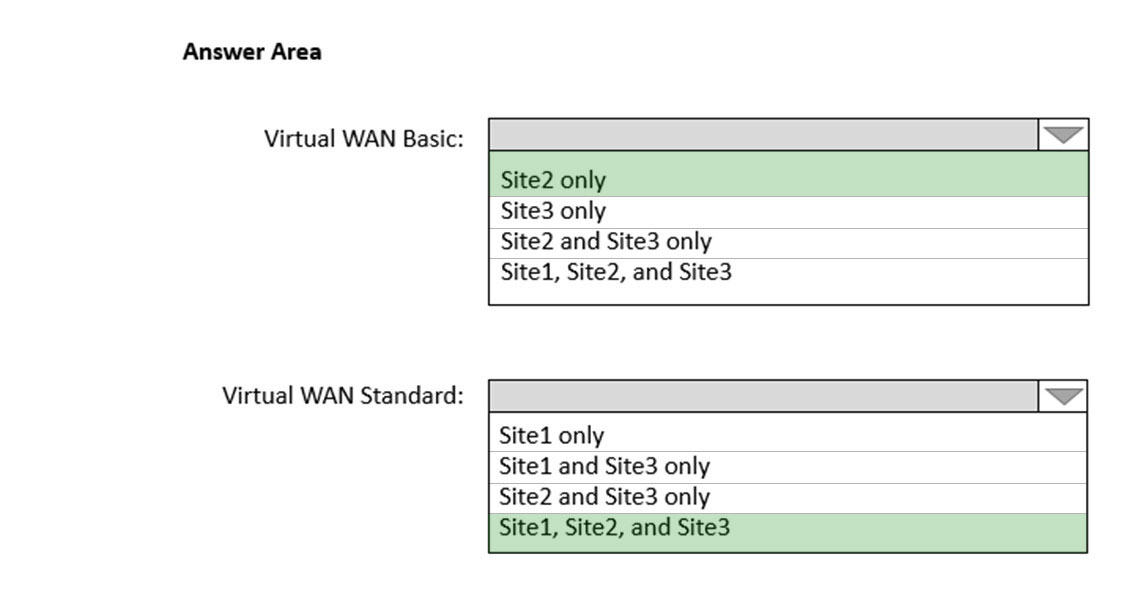

Correct Answer:

Reference:
https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-about

HOTSPOT -
You have an Azure subscription that contains two virtual networks named Vnet1 and Vnet2.

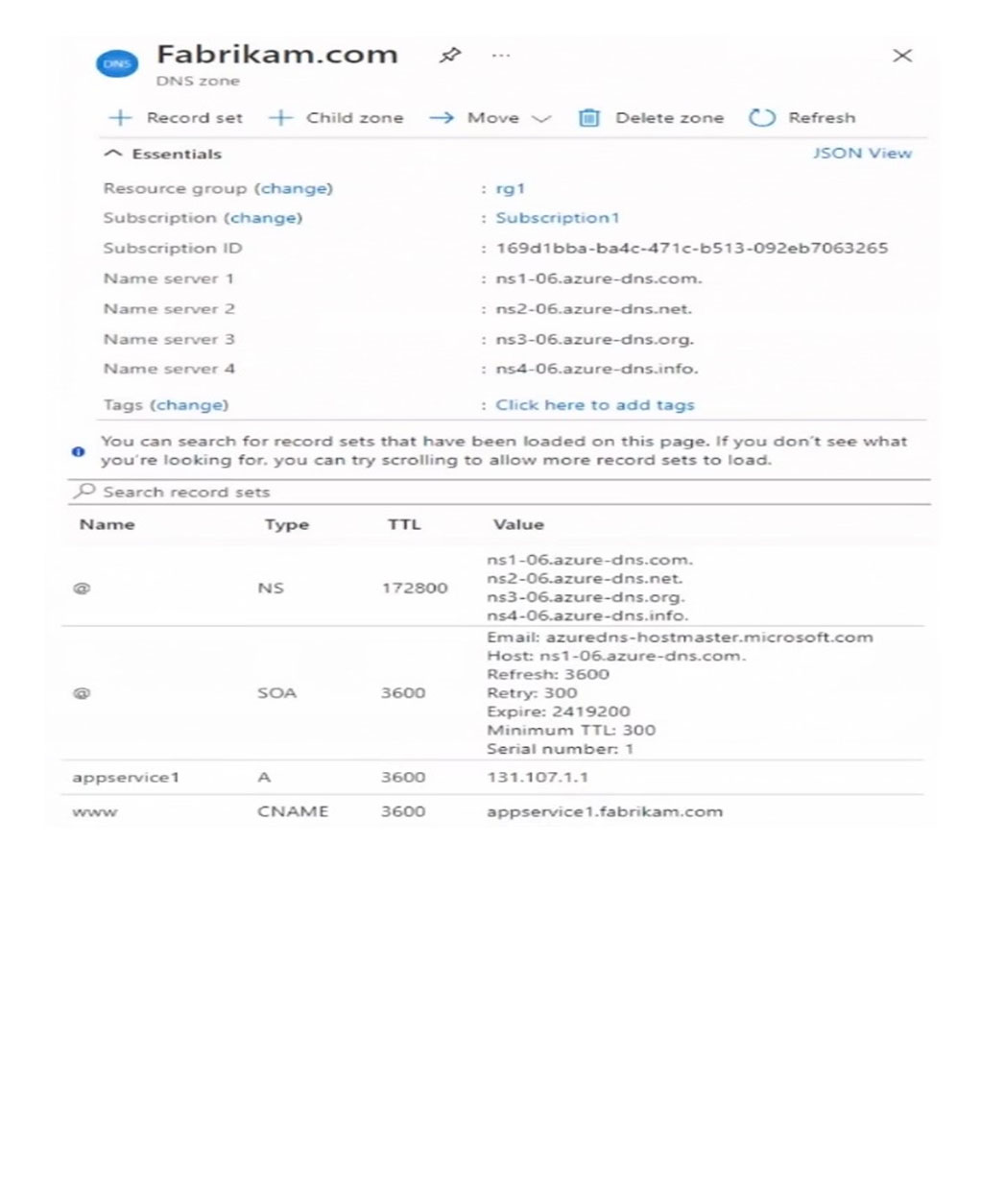

You register a public DNS zone named fabrikam.com. The zone is configured as shown in the Public DNS Zone exhibit.

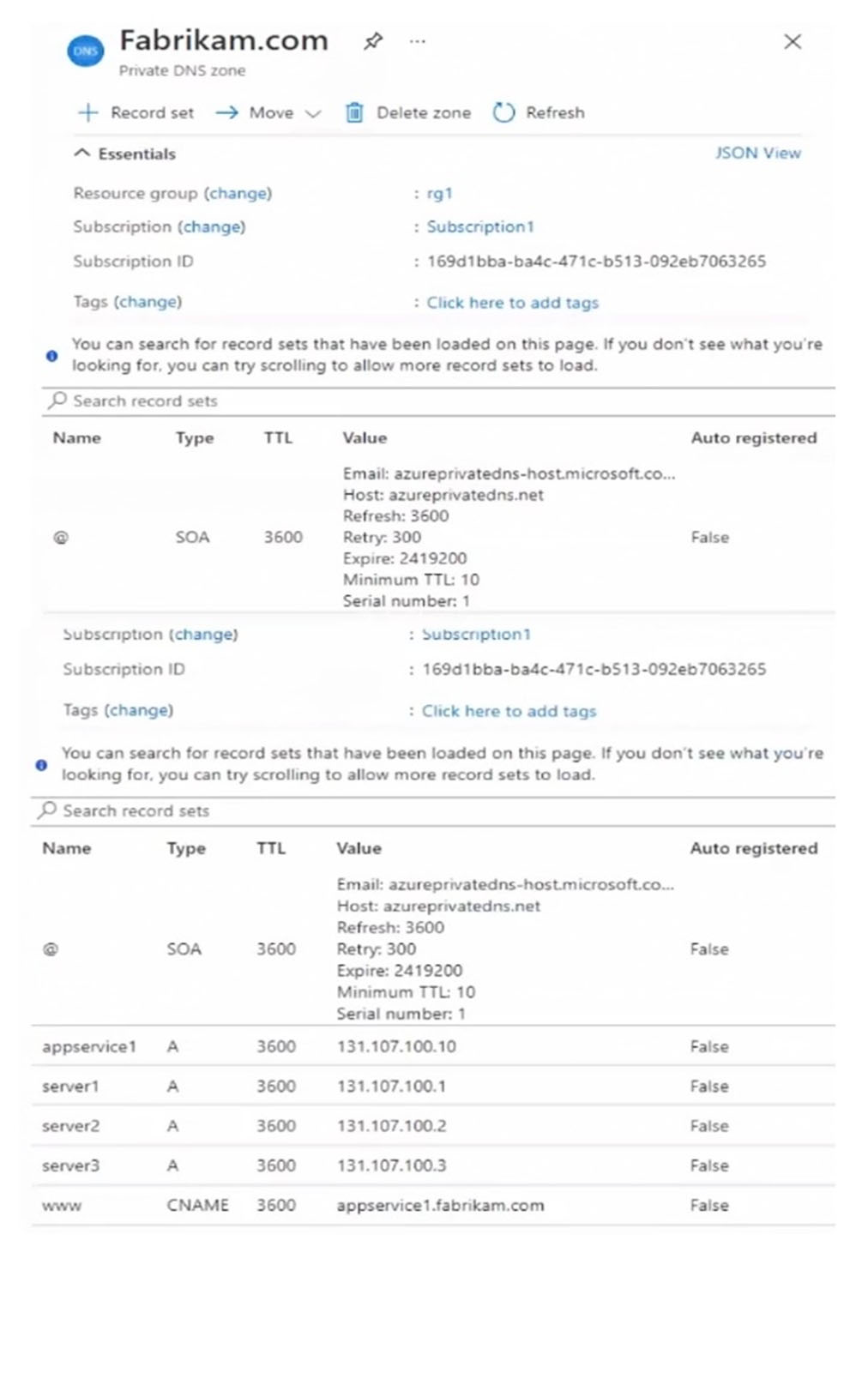

You have a private DNS zone named fabrikam.com. The zone is configured as shown in the Private DNS Zone exhibit.

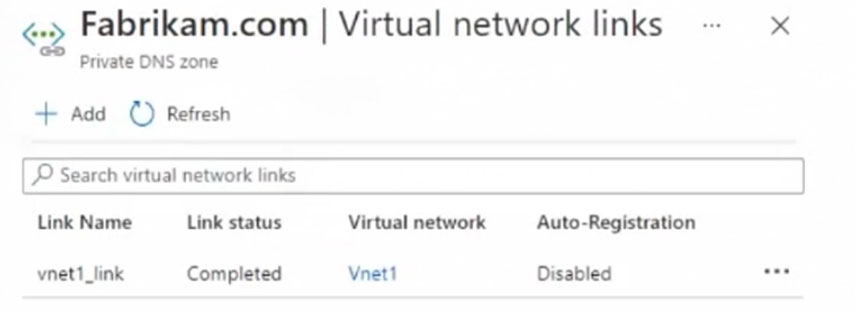

You have a virtual network link configured as shown in the Virtual Network Link exhibit.

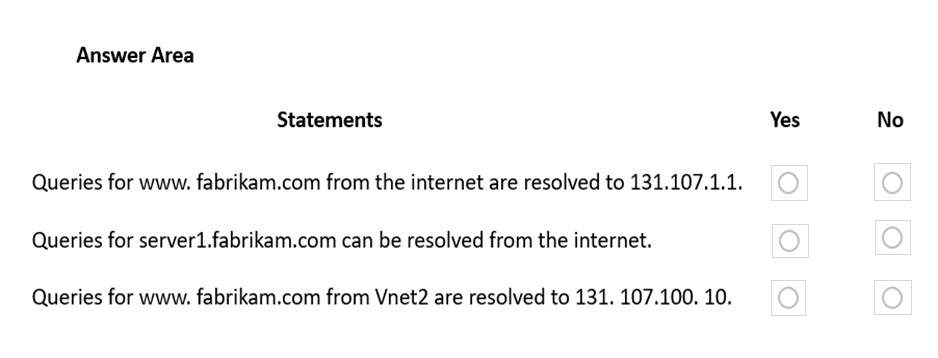

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

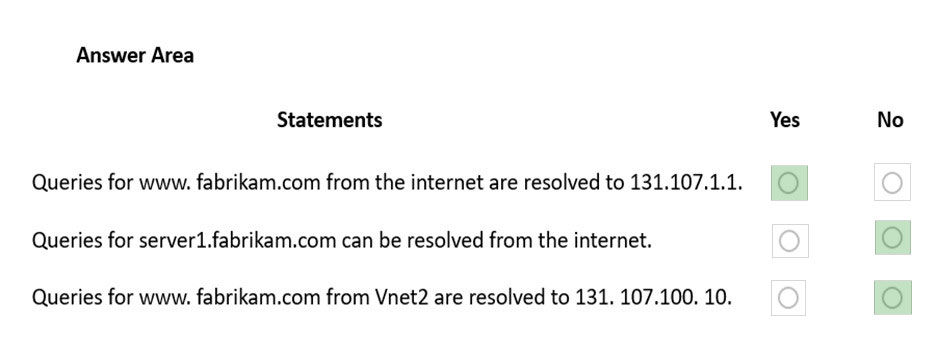

Correct Answer:

Box 1: Yes -
DNS queries from the internet use the public DNS zone. In the public DNS zone, www.fabrikam.com is a CNAME record that resolves to appservice1.fabrikam.com which resolves to 131.107.1.1.

Box 2: No -
DNS queries from the internet use the public DNS zone. There is no DNS record for server1.fabrikam.com in the public DNS zone.

Box 3: No -
The private DNS zone is linked to VNet1, not VNet2. Therefore, resources in VNet2 cannot query the private DNS zone.

HOTSPOT -
You have two Azure virtual networks named VNet1 and VNet2 in an Azure region that has three availability zones.
You deploy 12 virtual machines to each virtual network, deploying four virtual machines per zone. The virtual machines in VNet1 host an app named App1. The virtual machines in VNet2 host an app named App2.
You plan to use Azure Virtual Network NAT to implement outbound connectivity for App1 and App2.
You need to identify the minimum number of subnets and Virtual Network NAT instances required to meet the following requirements:
✑ A failure of two zones must NOT affect the availability of either App1 or App2.
✑ A failure of two zones must NOT affect the outbound connectivity of either App1 or App2.
What should you identify? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

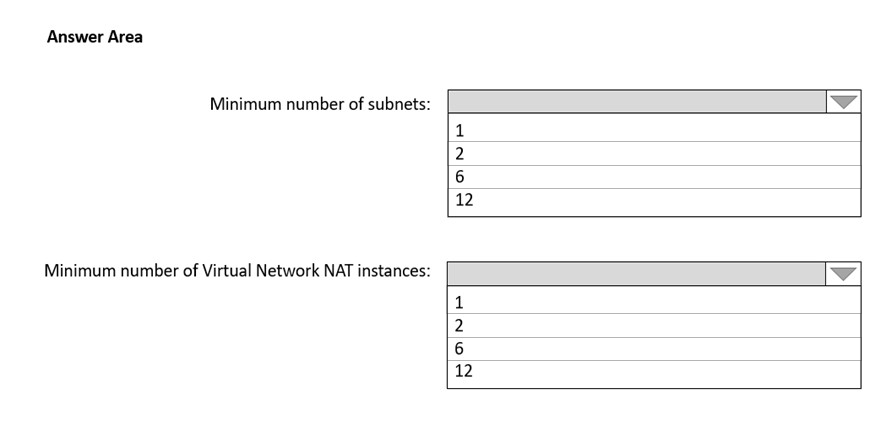

Hot Area:

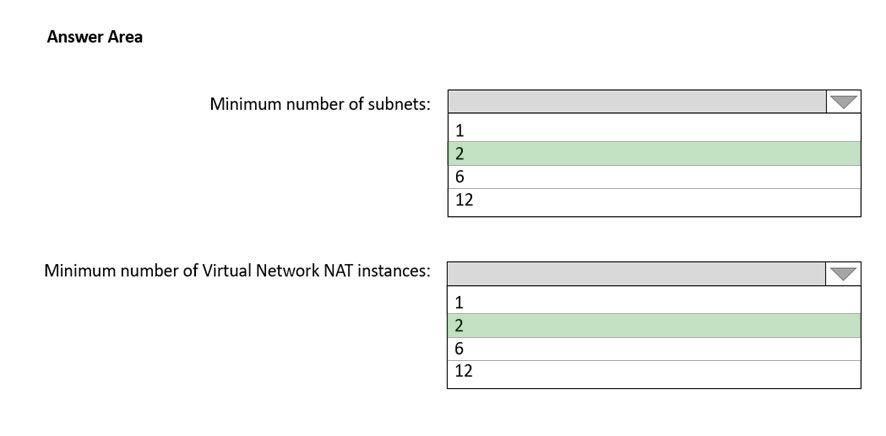

Correct Answer:

Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/nat-gateway/nat-overview
