DRAG DROP -

You have an Azure subscription that contains a virtual network named Vnet1 and an Azure SQL database named SQL1. SQL1 has a private endpoint on Vnet1.

You have a partner company named Fabrikam, Inc. Fabrikam has an Azure subscription that contains a virtual network named Vnet2 and a virtual machine named VM1. VM1 is connected to Vnet2.

You need to provide VM1 with access to SQL1 by using an Azure Private Link service.

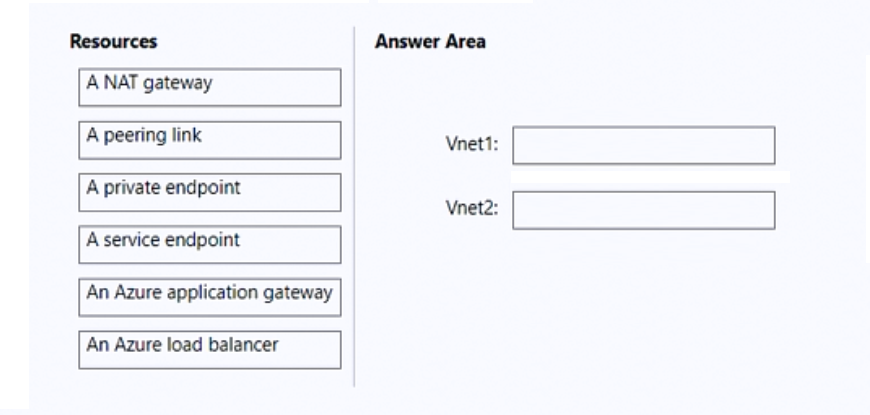

What should you implement on each virtual network? To answer, drag the appropriate resources to the correct virtual networks. Each resource may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

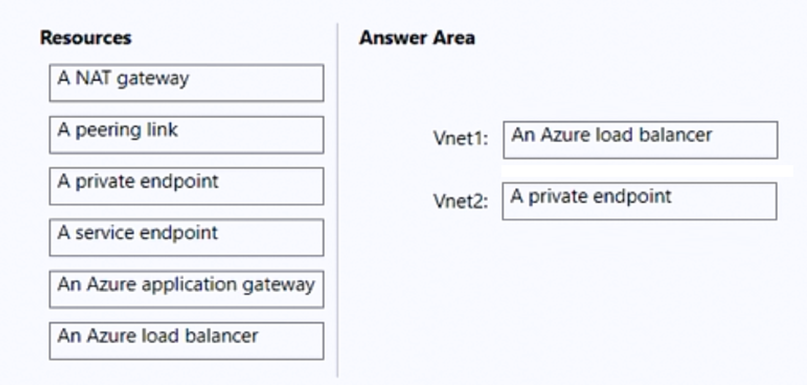

Correct Answer:

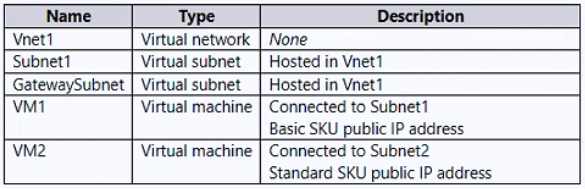

You have an Azure subscription that contains the resources shown in the following table.



You plan to deploy an Azure Virtual Network NAT gateway named Gateway1. The solution must meet the following requirements:

•VM1 will access the internet by using its public IP address.
•VM2 will access the internet by using its public IP address.
•Administrative effort must be minimized.

You need to ensure that you can deploy Gateway1 to Vnet1.

What is the minimum number of subnets required on Vnet1?

HOTSPOT -

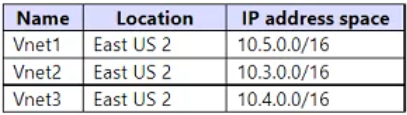

You have an Azure subscription that contains the virtual networks shown in the following table.



You have a virtual machine named VM5 that has the following IP address configurations:

•IP address:10.4.0.5
•Subnet mask:255.255.255.0
•Default gateway: 10.4.0.1
•DNS server: 168.63.129.16

You have an Azure Private DNS zone named fabrikam.com that contains the records shown in the following table.

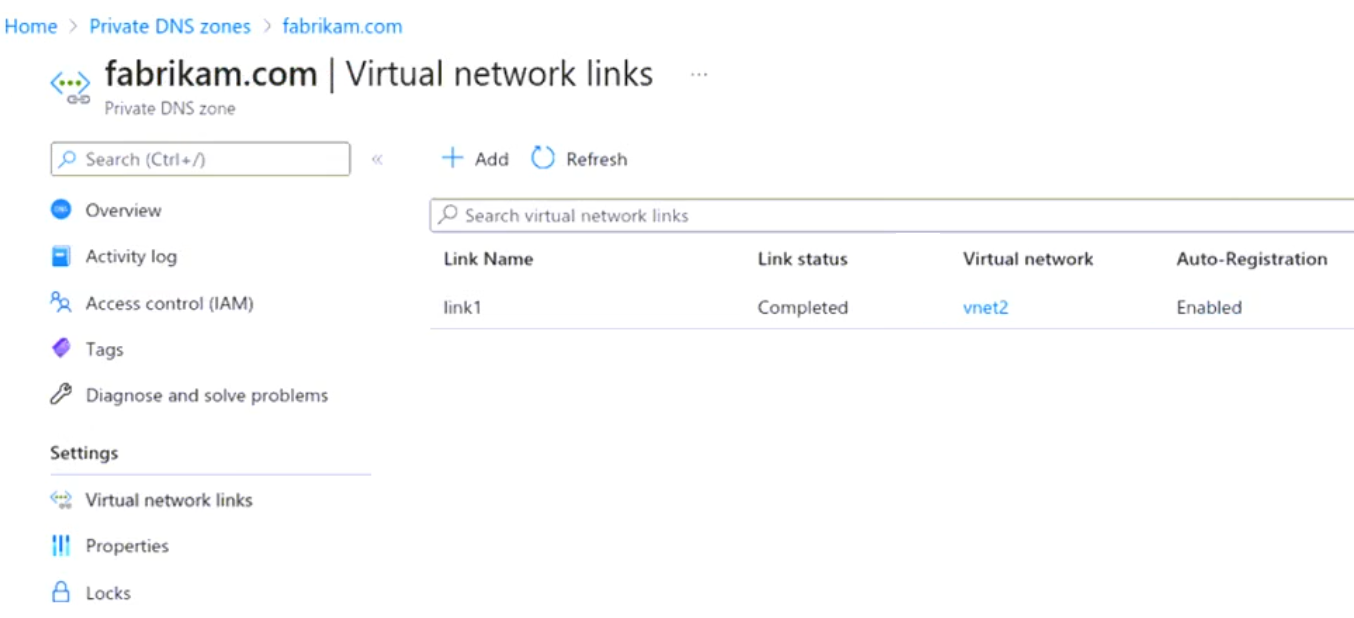

The virtual network links in the fabrikam.com DNS zone are configured as shown in the exhibit. (Click the Exhibit tab.)



VM5 fails to resolve the IP address for app1.fabrikam.com.

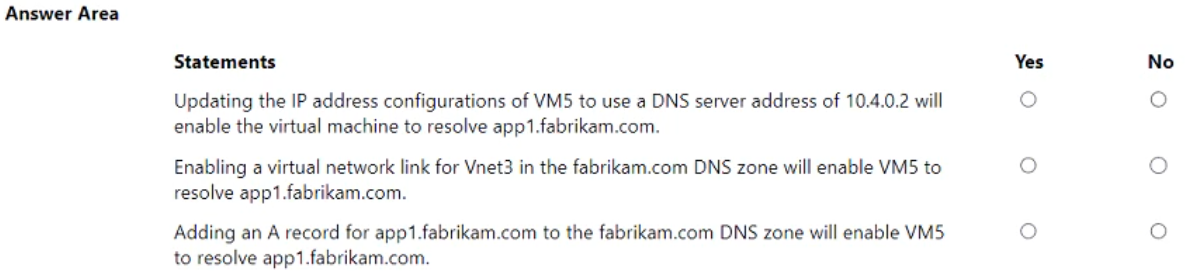

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

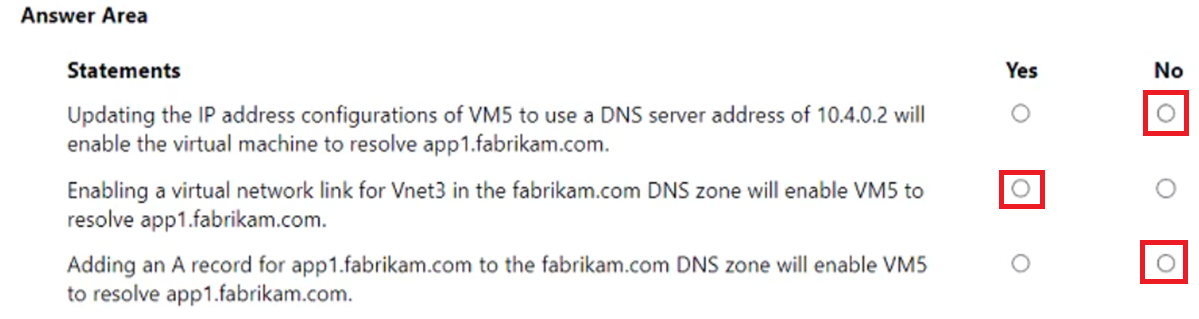

Correct Answer:

Your company has five offices. Each office has a firewall device and a local internet connection. The offices connect to a third-party SD-WAN.

You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 contains a virtual network gateway named Gateway1. Each office connects to Gateway1 by using a Site-to-Site VPN connection.

You need to replace the third-party SD-WAN with an Azure Virtual WAN.

What should you include in the solution?

You are planning the IP addressing for the subnets in Azure virtual networks.

Which type of resource requires IP addresses in the subnets?
