HOTSPOT
-

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. Both subnets contain virtual machines.

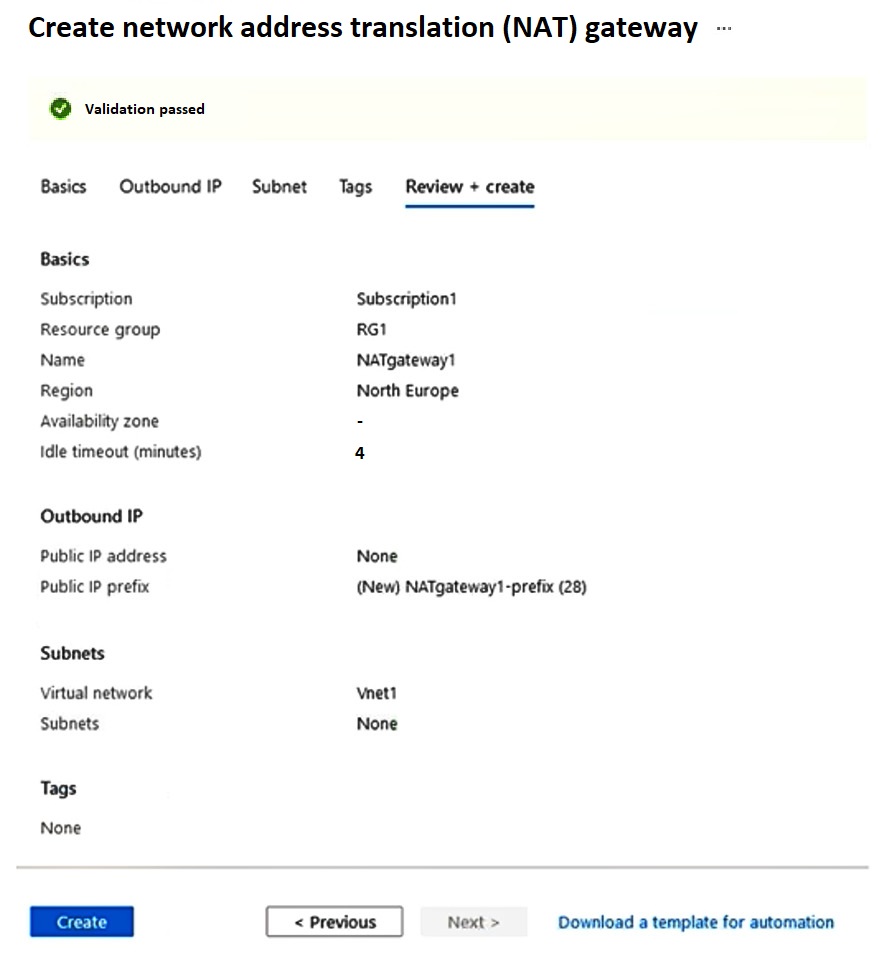

You create a NAT gateway named NATgateway1 as shown in the following exhibit.

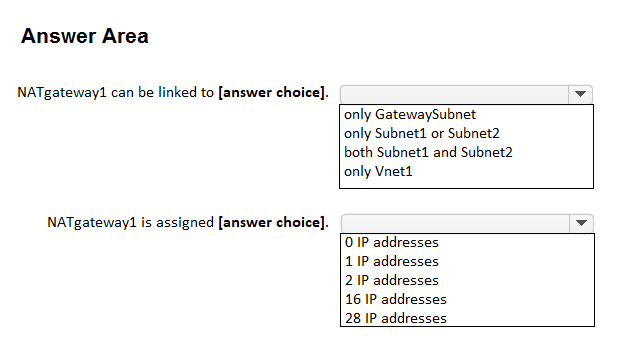

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.

NOTE: Each correct selection is worth one point.

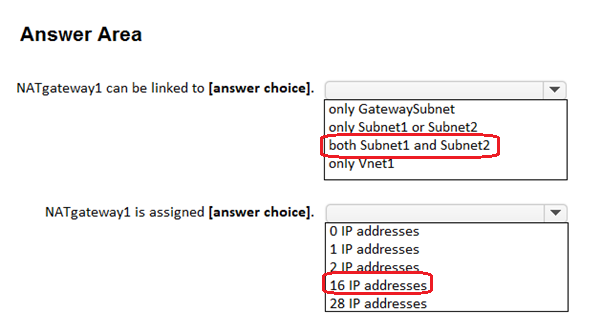

Correct Answer:

HOTSPOT -

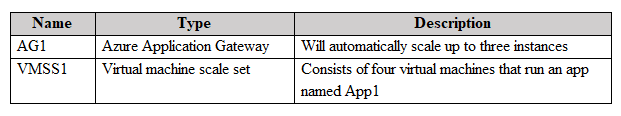

You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains the resources shown in the following table.



You need to publish App1 by using AG1 and a URL of https://app1.contoso.com. The solution must meet the following requirements:

•TLS connections must terminate on AG1.
•Minimize the number of targets in the backend pool of AG1.
•Minimize the number of deployed copies of the SSL certificate of App1.

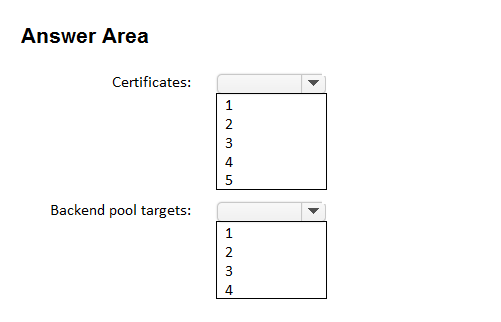

How many locations should you import to the certificate, and how many targets should you add to the backend pool of AG1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

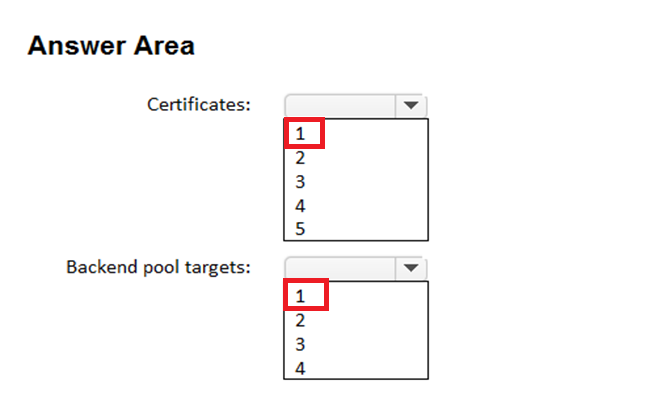

Correct Answer:

HOTSPOT
-

You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 has a /24 IPv4 address space.

You need to subdivide Vnet1. The solution must maximize the number of usable subnets.

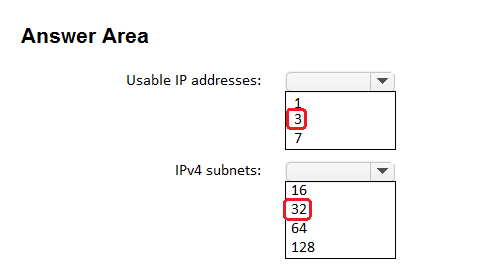

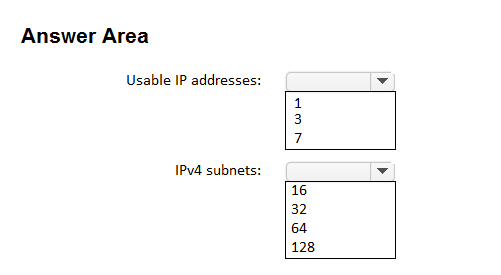

What is the maximum number of IPv4 subnets you can create, and how many usable IP addresses will be available per subnet? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:

HOTSPOT -

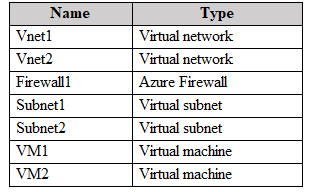

You have an Azure subscription that contains the resources shown in the following table.

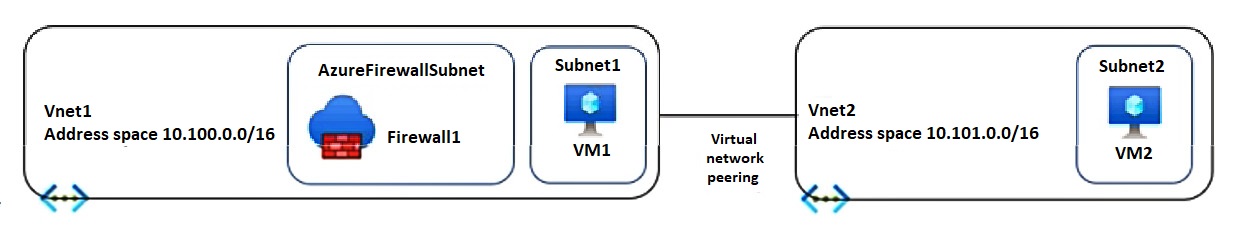

The virtual network topology is shown in the following exhibit.

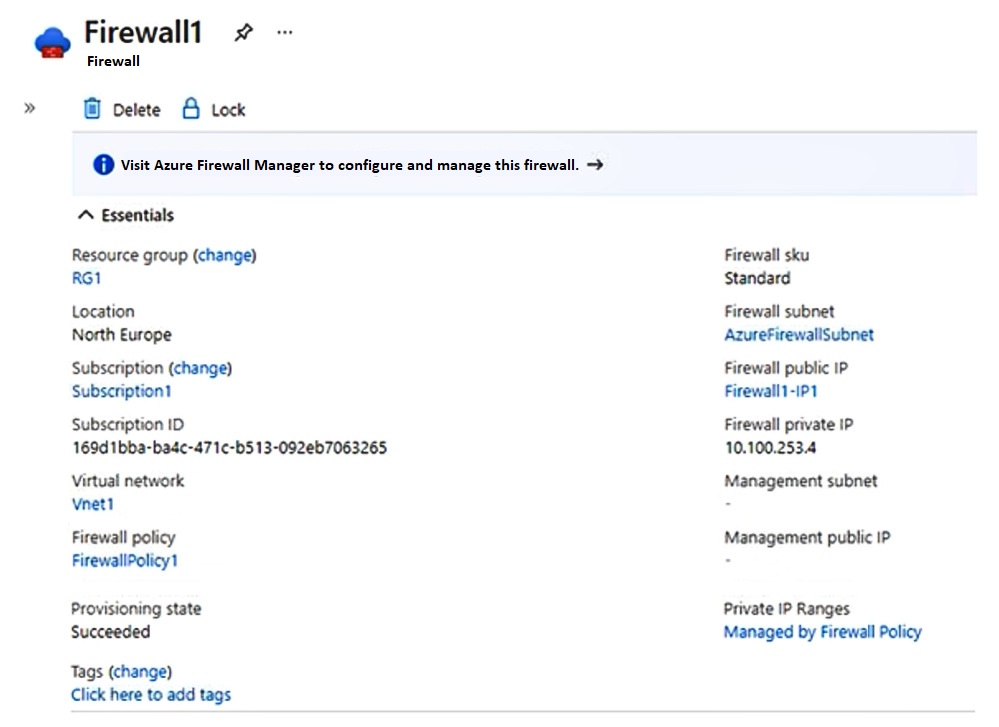

Firewall1 is configured as shown in following exhibit.



FirewallPolicy1 contains the following rules:

•Allow outbound traffic from Vnet1 and Vnet2 to the internet.
•Allow any traffic between Vnet1 and Vnet2.

No custom private endpoints, service endpoints, routing tables, or network security groups (NSGs) were created.

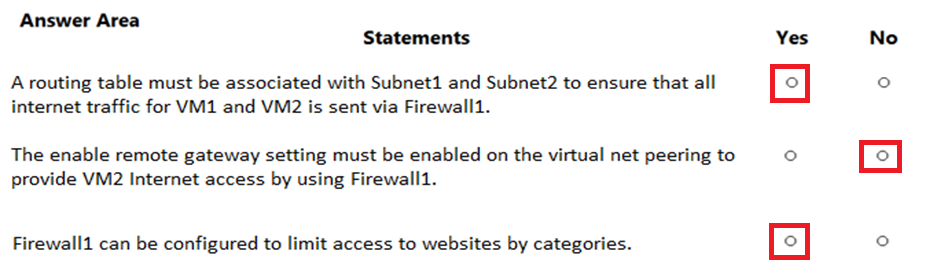

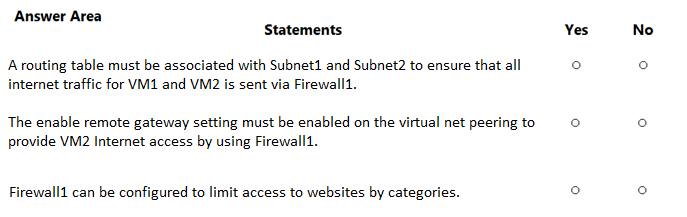

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Correct Answer:

HOTSPOT -

Your company has 40 branch offices across North America and Europe.

You have an Azure subscription that contains the following virtual networks:

•Two networks in the East US Azure region
•Three networks in the West Europe Azure region

You need to implement Azure Virtual WAN. The solution must meet the following requirements:

•Each branch office in North America must have an ExpressRoute circuit and a Site-to-Site VPN that connects to the East US region.
•Each branch office in Europe must have an ExpressRoute circuit and a Site-to-Site VPN that connects to the West Europe region.
•Transitive connections must be supported between all the branch offices and all the virtual networks.
•Costs must be minimized.

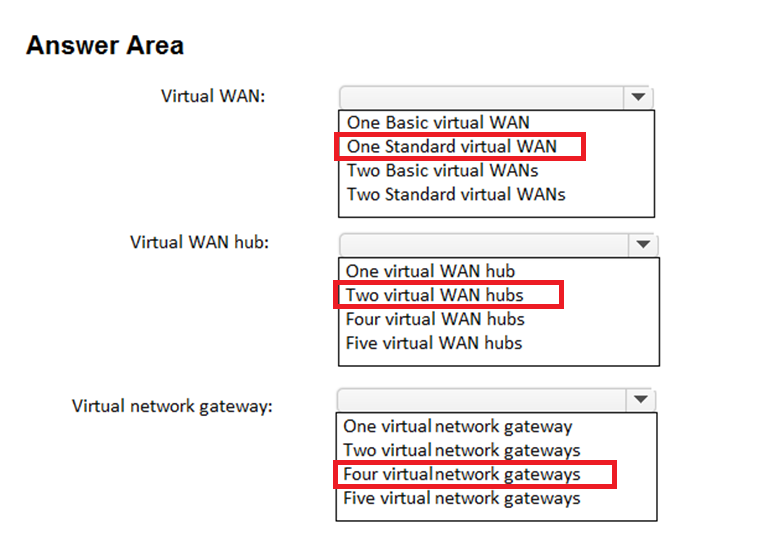

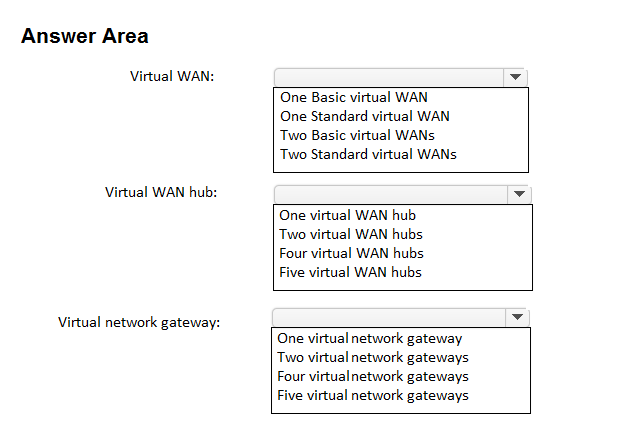

What is the minimum number of Virtual WAN resources required? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:
