SIMULATION
-




Username and password
-

Use the following login credentials as needed:

To enter your username, place your cursor in the Sign in box and click on the username below.

To enter your password, place your cursor in the Enter password box and click on the password below.

Azure Username: User-12345678@cloudslice.onmicrosoft.com

Azure Password: xxxxxxxxxx
-

If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab.

The following information is for technical support purposes only:

Lab Instance: 12345678
-

You plan to configure a VPN tunnel for VNET2.

You need to ensure that all internet traffic from subnet2-1 is routed through an on-premises firewall before reaching the destination. The solution must be achieved without using dynamic routing protocols.

To complete this task, sign in to the Azure portal.

Correct Answer:

SIMULATION
-




Username and password
-

Use the following login credentials as needed:

To enter your username, place your cursor in the Sign in box and click on the username below.

To enter your password, place your cursor in the Enter password box and click on the password below.

Azure Username: User-12345678@cloudslice.onmicrosoft.com

Azure Password: xxxxxxxxxx
-

If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab.

The following information is for technical support purposes only:

Lab Instance: 12345678
-

You plan to deploy two DNS servers to subnet2-1. Each server will host a DNS zone for fabrikam,com. The DNS zones will contain records from the on-premises network only. The IP address of the DNS servers will be 10.2.1.4 and 10.2.1.5.

You need to ensure that virtual machines on VNET2 can resolve the names of the on-premises servers in fabrikam.com.

To complete this task, sign in to the Azure portal.

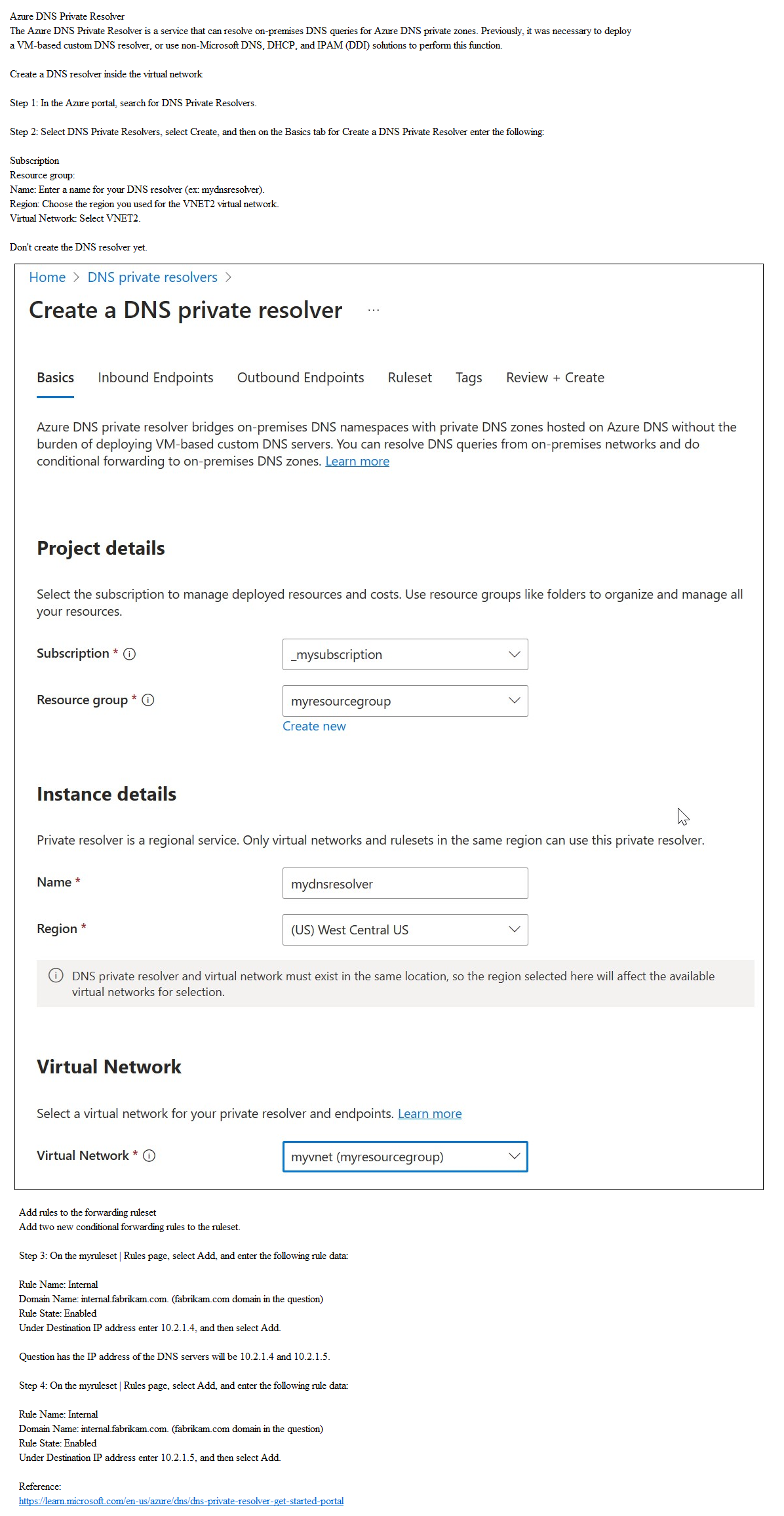

Correct Answer:

HOTSPOT
-

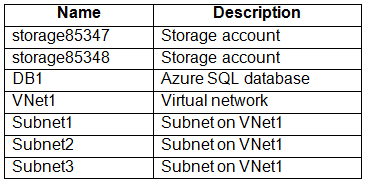

You have an Azure subscription that contains the resources shown in the following table.

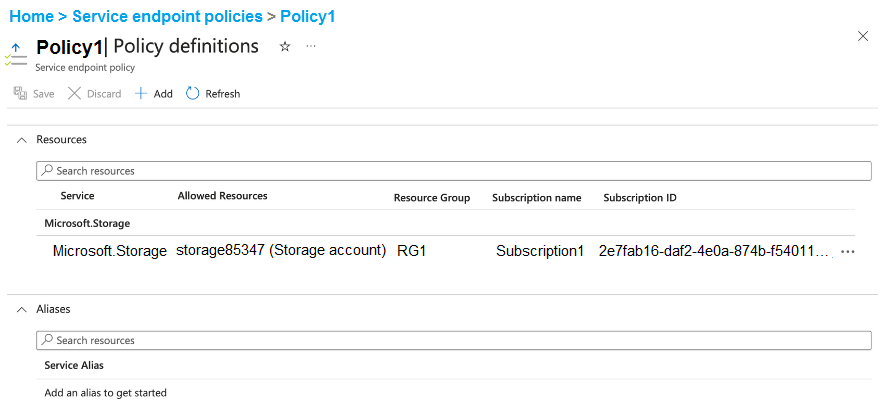

You create a service endpoint policy as shown in the Policy exhibit. (Click the Policy tab.)

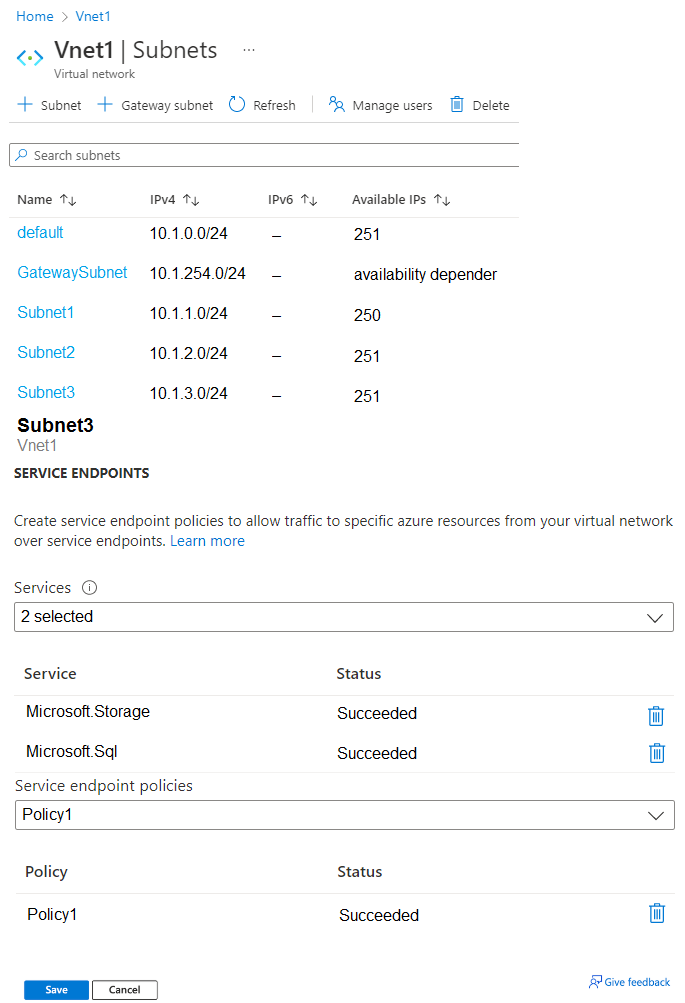

You configure the Service Endpoints settings for Subnet3 as shown in the Subnets exhibit. (Click the Subnets tab.)

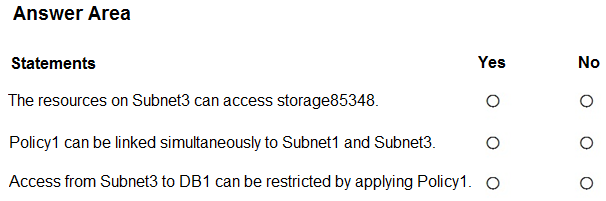

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

You have an on-premises DNS server named Server that hosts a primary DNS zone named fabrikam.com.

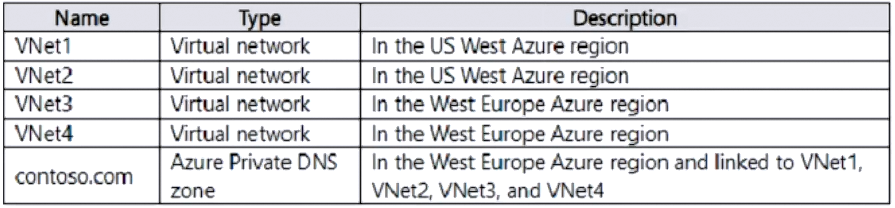

You have an Azure subscription that contains the resources shown in the following table.



Users on the on-premises network access resources on all the virtual networks by using a Site-to-Site (S2S) VPN.

You need to deploy an Azure DNS Private Resolver solution that meets the following requirements:

•Resources connected to the virtual networks must be able to resolve DNS names for fabrikam.com.
•Server1 must be able to resolve the DNS names of the resources in contoso.com.
•The solution must minimize costs and administrative effort.

What is the minimum number of resolvers you should deploy?

HOTSPOT
-

You have an Azure subscription that contains a dual-stack virtual network named VNet1. VNet1 has the following IP address spaces:

•IPv4: 192.168.0.0/24
•IPv6: fd00:db8:deca:deed:/48

You plan to deploy an Azure VPN gateway and multiple virtual machines to VNet1.

You need to configure the subnet masks for VNet1. The solution must meet the following requirements:

•Maximize the number of usable IP addresses.
•Support the deployment of the VPN gateway and the virtual machines.

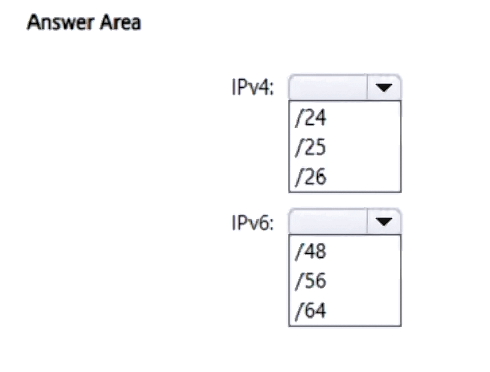

Which subnet mask should you use for each address space? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.
