HOTSPOT
-

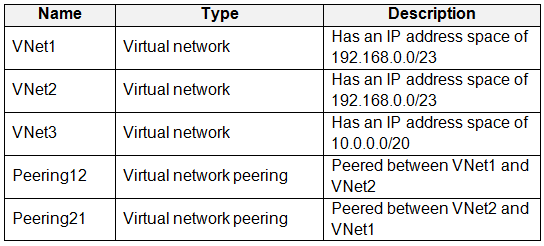

You have an Azure subscription that contains the resources shown in the following table.



Each virtual network contains 20 virtual machines and a subnet that has an IP address space of /24.

You need to ensure that you can access the virtual machines from the internet by using Azure Bastion.

What is the minimum number of bastion subnets you should deploy, and what is the smallest supported IP address space for each bastion subnet? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:

You have an Azure subscription that contains 100 network security groups (NSGs).

You need to ensure that you log the application of specific NSG rules.

Which type of log should you configure?

HOTSPOT
-

You have an Azure subscription that contains a virtual machine named VM1 and a virtual network named Vnet1. Vnet1 contains three subnets named Subnet1, Subnet2, and GatewaySubnet. VM1 is connected to Subnet1.

You plan to deploy a new virtual machine named VM2 that will perform network traffic routing and inspection.

You need to ensure that all the traffic from VM1 to the internet will be routed through VM2.

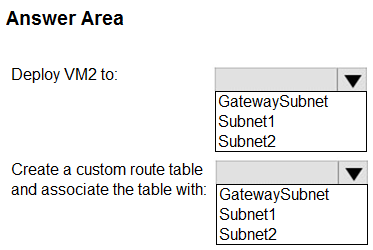

What should you do? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

HOTSPOT
-

You have an on-premises network and an Azure virtual network named VNet1.

You need to implement Azure Extended Network. The solution must minimize costs.

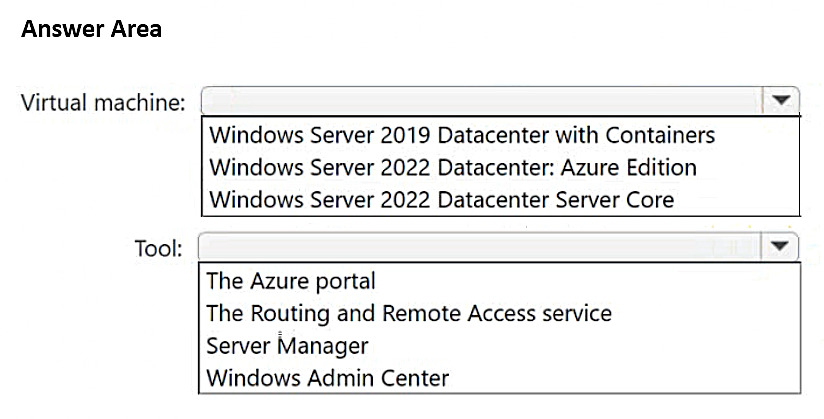

Which type of virtual machine should you deploy to VNet1, and which tool should you use to configure Azure Extended Network? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

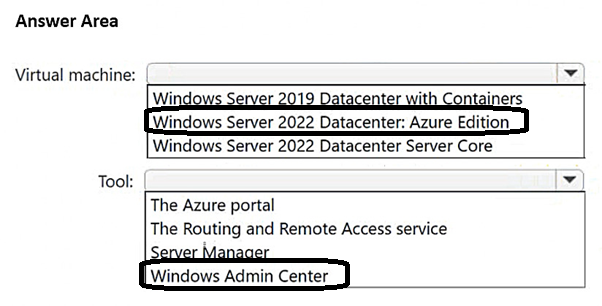

Correct Answer:

Your company has a remote office that contains a macOS device named Device1. Device1 has an IKEv2 VPN client installed.

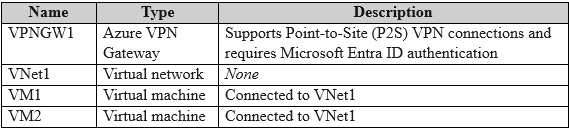

You have an Azure subscription that contains the resources shown in the following table.



You need to ensure that Device1 can access the resources on VNet1 by using the VPN connections of VPNGW1. The solution must minimize administrative effort.

What should you do first?
