HOTSPOT -

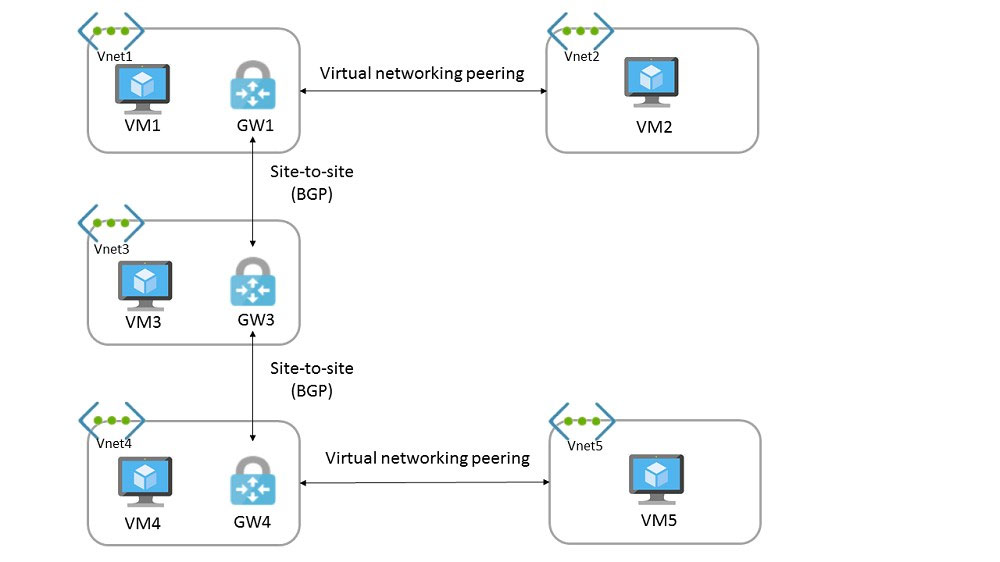

You have the Azure environment shown in the exhibit.

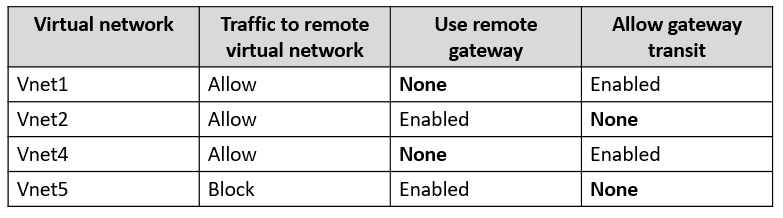

You have virtual network peering between Vnet1 and Vnet2. You have virtual network peering between Vnet4 and Vnet5. The virtual network peering is configured as shown in the following table.

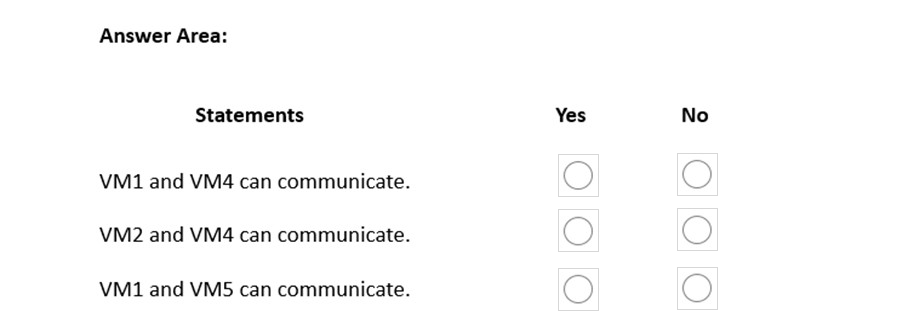

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Hot Area:

Correct Answer:

HOTSPOT -
You have on-premises datacenters in New York and Seattle.
You have an Azure subscription that contains the ExpressRoute circuits shown in the following table.

You need to ensure that all the data sent between the datacenters is routed via the ExpressRoute circuits. The solution must minimize costs.

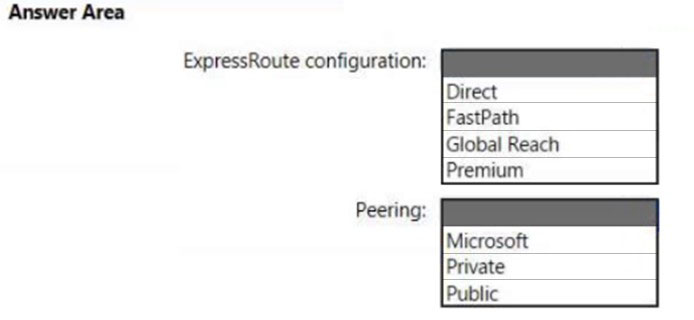

How should you configure the network? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

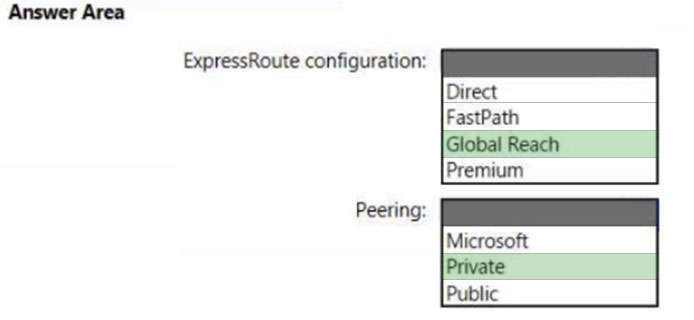

Correct Answer:

Box 1: Global Reach -
ExpressRoute Global Reach is the service where if you have two datacenters, which are located at different geo-locations and both are connected to Microsoft
Azure via Express Route then these two datacenters can also connect to each other securely via Microsoft's backbone.
Incorrect:
FastPath is designed to improve the data path performance between your on-premises network and your virtual network. When enabled, FastPath sends network traffic directly to virtual machines in the virtual network, bypassing the gateway.

Box 2: Private -
With ExpressRoute Global Reach, you can link ExpressRoute circuits together to make a private network between your on-premises networks.
Reference:
https://docs.microsoft.com/en-us/azure/expressroute/expressroute-global-reach

You have an Azure virtual network named Vnet1 and an on-premises network. The on-premises network has policy-based VPN devices.
In Vnet1, you deploy a virtual network gateway named GW1 that uses a SKU of VpnGw1 and is route-based.

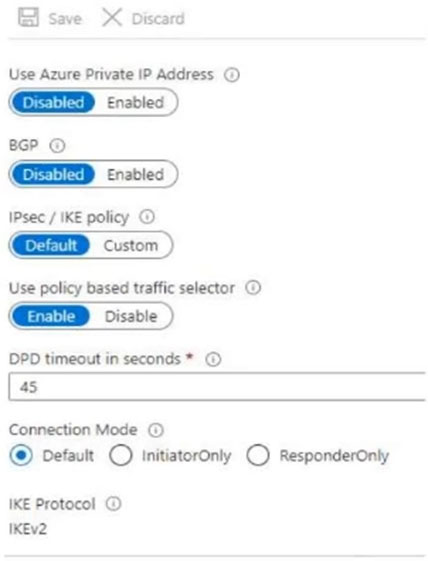

You have a Site-to-Site VPN connection for GW1 as shown in the following exhibit.

You need to ensure that the on-premises network can connect to the route-based GW1.
What should you do before you create the connection?

HOTSPOT
-

Your on-premises network contains a VPN device.

You have an Azure subscription that contains a virtual network and a virtual network gateway.

You need to create a Site-to-Site VPN connection that has a custom cryptographic policy.

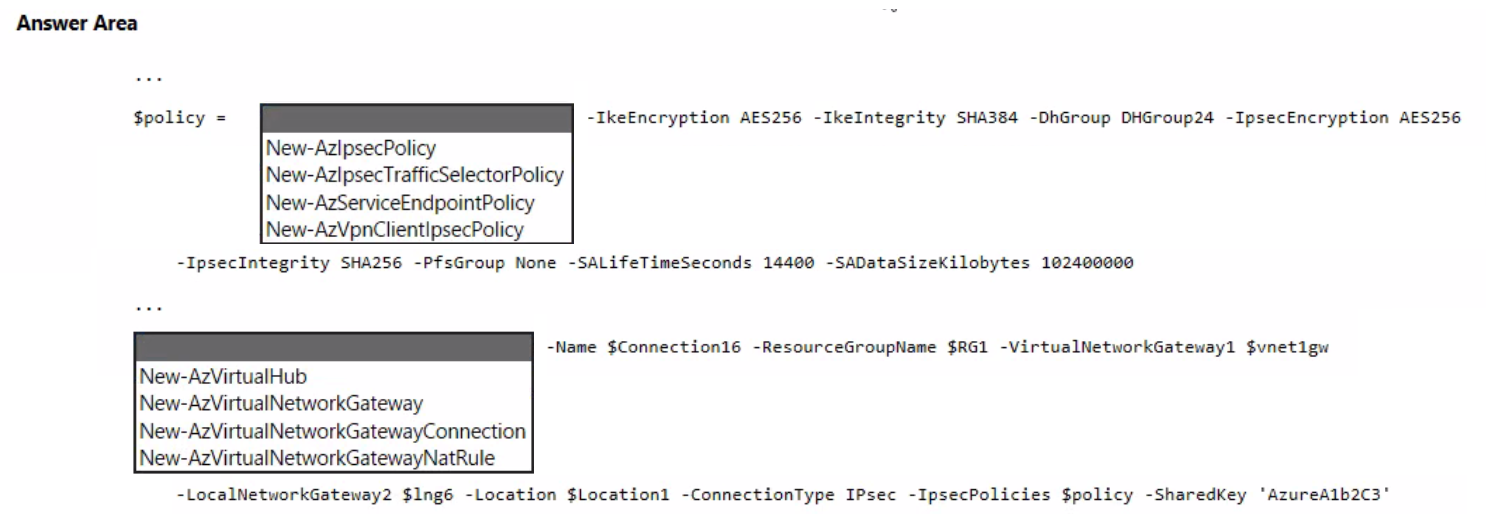

How should you complete the PowerShell script? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:

HOTSPOT
-

You have an Azure virtual network and an on-premises datacenter that connect by using a Site-to-Site VPN tunnel.

You need to ensure that all traffic from the virtual network to the internet is routed through the datacenter.

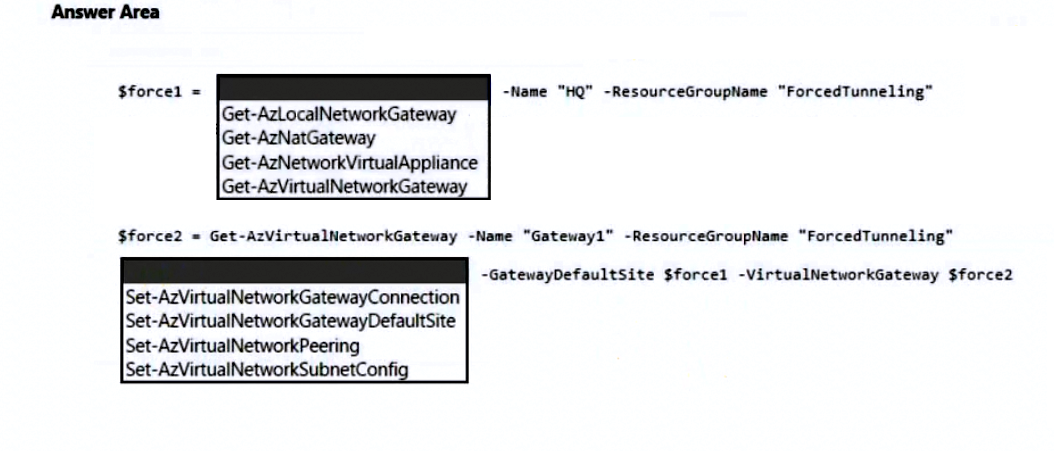

How should you complete the PowerShell script to configure forced tunneling? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

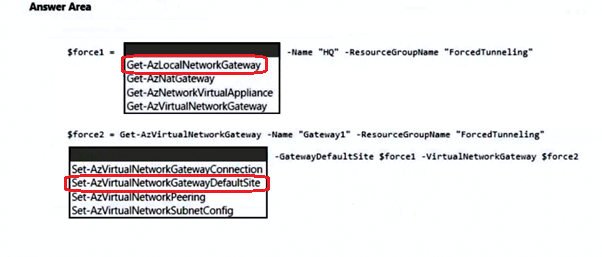

Correct Answer:
