HOTSPOT -
You have an Azure Front Door instance that provides access to a web app. The web app uses a hostname of www.contoso.com.

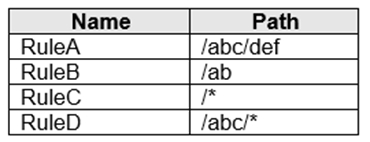

You have the routing rules shown in the following table.

Which rule will apply to each incoming request? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point

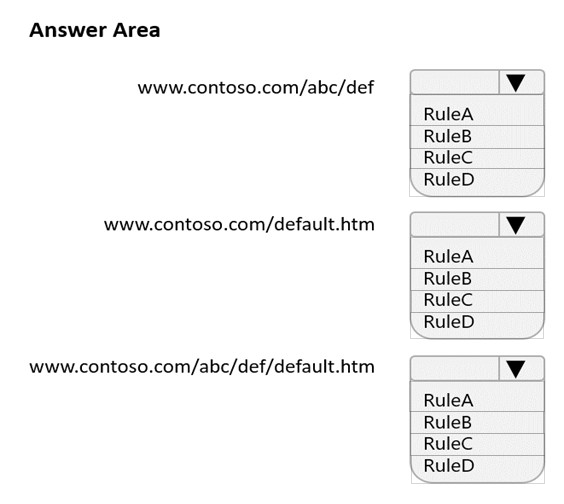

Hot Area:

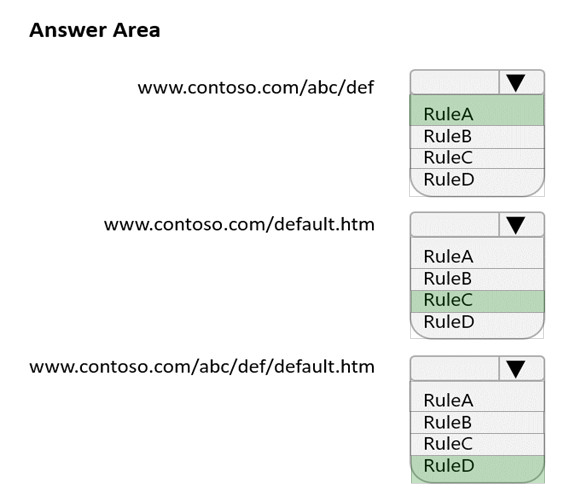

Correct Answer:

Reference:
https://docs.microsoft.com/en-us/azure/frontdoor/front-door-route-matching

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.
You configure the application gateway to direct traffic to the URL of the application gateway.

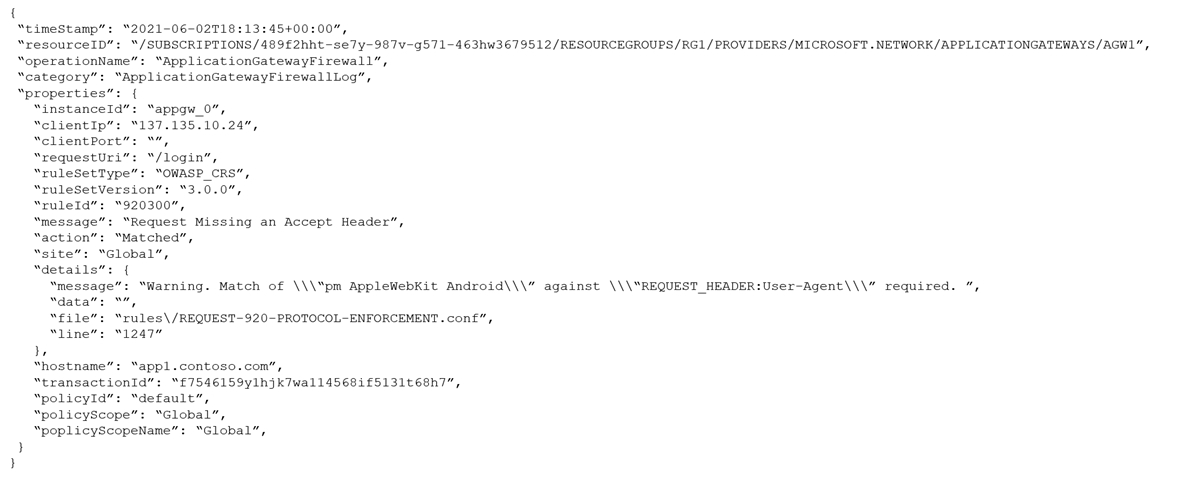

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.
Solution: You disable the WAF rule that has a ruleId 920300.
Does this meet the goal?

You have an Azure subscription that contains an Azure App Service app. The app uses a URL of https://www.contoso.com.
You need to use a custom domain on Azure Front Door for www.contoso.com. The custom domain must use a certificate from an allowed certification authority
(CA).
What should you include in the solution?

You have an Azure application gateway for a web app named App1. The application gateway allows end-to-end encryption.
You configure the listener for HTTPS by uploading an enterprise-signed certificate.
You need to ensure that the application gateway can provide end-to-end encryption for App1.
What should you do?

HOTSPOT -
You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2.

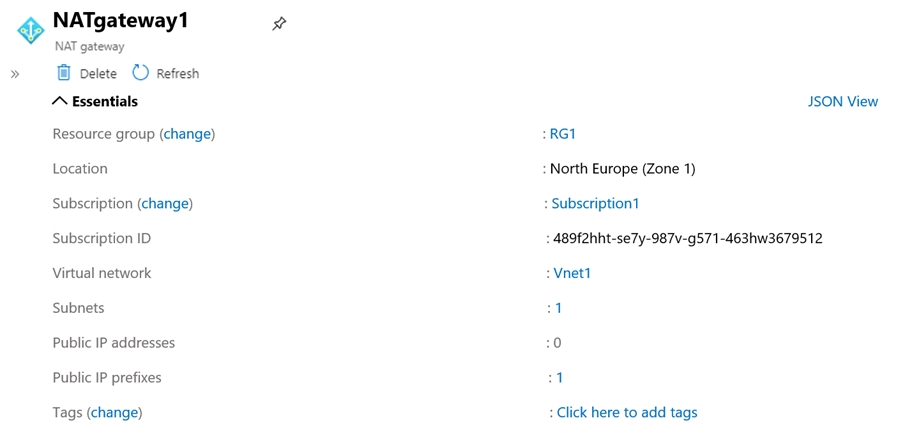

You have the NAT gateway shown in the NATgateway1 exhibit.

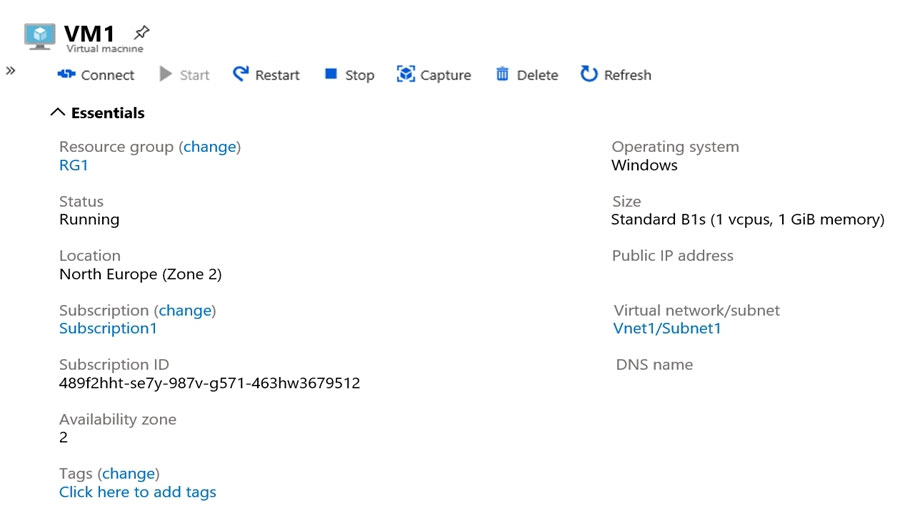

You have the virtual machine shown in the VM1 exhibit.

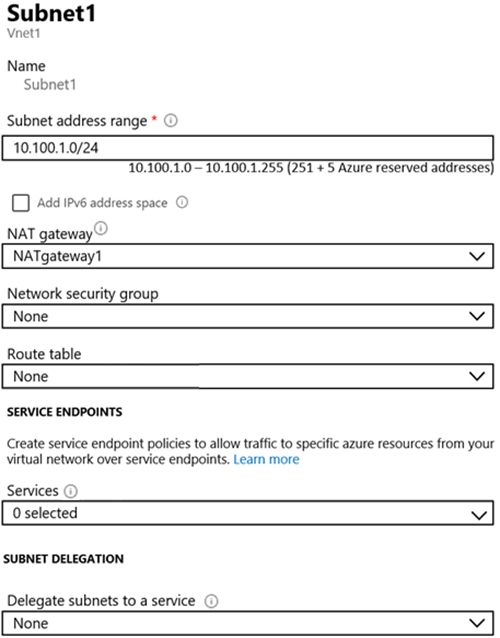

Subnet1 is configured as shown in the Subnet1 exhibit.

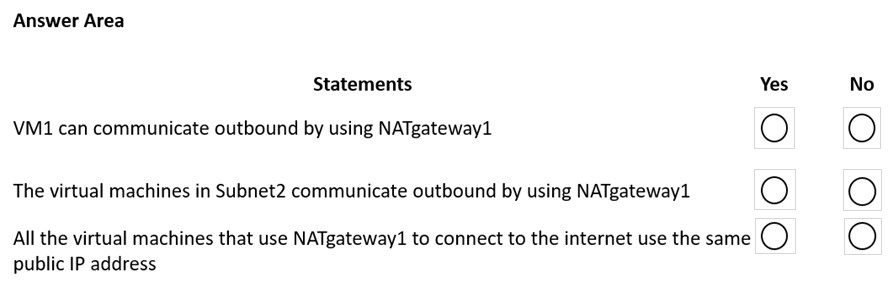

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

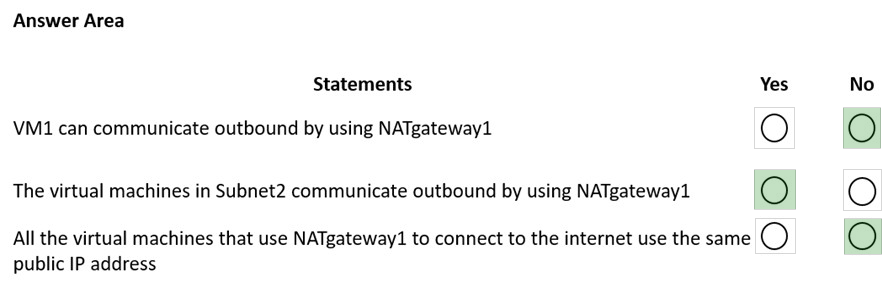

Correct Answer:

Box 1: No -
VM1 is in Zone2 whereas the NAT Gateway is in Zone1. The VM would need to be in the same zone as the NAT Gateway to be able to use it. Therefore, VM1 cannot use the NAT gateway.

Box 2: Yes -
NATgateway1 is configured in the settings for Subnet2.

Box 3: No -
The NAT gateway does not have a single public IP address, it has an IP prefix which means more than one IP address. The VMs the use the NAT Gateway can use different public IP addresses contained within the IP prefix.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/nat-gateway/nat-gateway-resource
