Your company has offices in London, Tokyo, and New York.

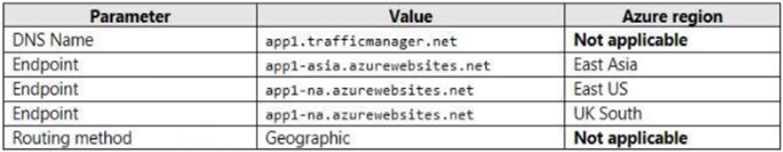

The company has a web app named App1 that has the Azure Traffic Manager profile shown in the following table.

In Asia, you plan to deploy an additional endpoint that will host an updated version of App1.
You need to route 10 percent of the traffic from the Tokyo office to the new endpoint during testing.
What should you configure in Traffic Manager?

HOTSPOT -

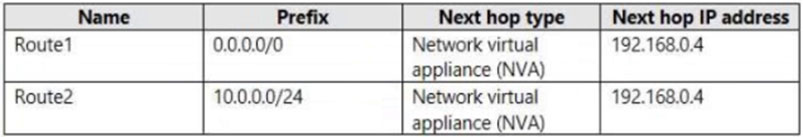

You configure a route table named RT1 that has the routes shown in the following table.

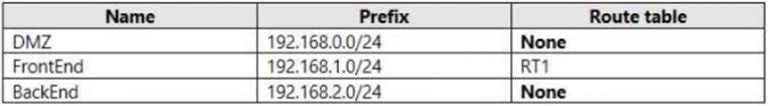

You have an Azure virtual network named Vnet1 that has the subnets shown in the following table.

You have the resources shown in the following table.

Vnet1 connects to an ExpressRoute circuit. The on-premises router advertises the following routes:
✑ 0.0.0.0/0
✑ 10.0.0.0/16

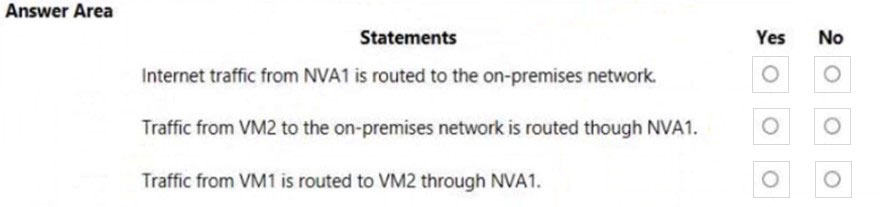

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

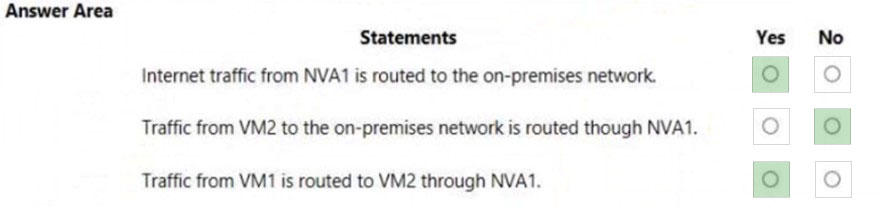

Correct Answer:

Box 1: Yes -
NVA1 with IP (NVA-network virtual appliance) 192.168.0.4 is on the DMZ subnet. It will use route 10.0.0.0/16 to the on-premises network.

Box 2: No -
VM2 has IP address 192.168.2.4 and is on the BackEnd subnet. VM2 will not use the RT1 route table, and will not reach the on-premises network through NVA1.

Box 3: Yes -
VM1 with IP address 192.168.1.4 is on the FrontEnd subnet, and will use the RT1 routing table. It will use Route2 and Next Hop IP address 192.168.0.4, IP address of NVA1, to reach VM2.

HOTSPOT -

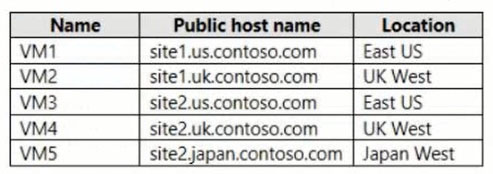

You have an Azure subscription. The subscription contains virtual machines that host websites as shown in the following table.

You have the Azure Traffic Manager profiles shown in the following table.

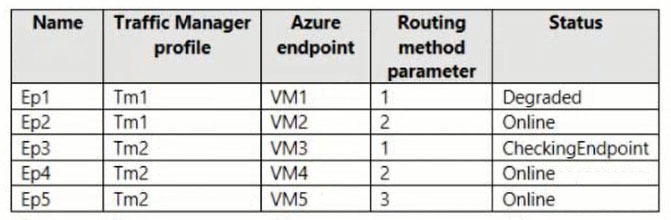

You have the endpoints shown in the following table.

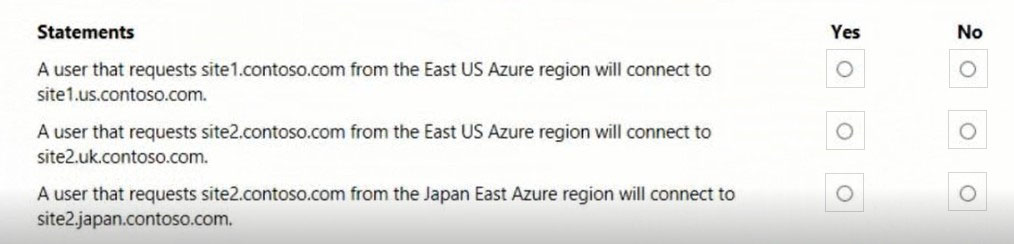

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

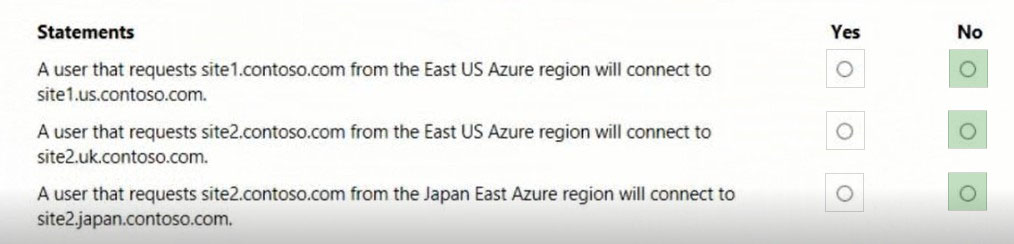

Correct Answer:

Box 1: No -
VM1, which is hosting site1.contoso.com, is located in East US. The VM1 endpoint status is degraded. Endpoint monitoring health checks are failing. The endpoint isn't included in DNS responses and doesn't receive traffic.
When an endpoint has a Degraded status, it's no longer returned in response to DNS queries. Instead, an alternative endpoint is chosen and returned. The traffic- routing method configured in the profile determines how the alternative endpoint is chosen.
Priority. Endpoints form a prioritized list. The first available endpoint on the list is always returned. If an endpoint status is Degraded, then the next available endpoint is returned.
The user will connect to site2.us.contoso.com instead.

Box 2: No -
VM3, which is hosting site2.contoso.com, is located in in East US. The VM3 endpoint status is CheckingEndpoint. The endpoint is monitored, but the results of the first probe haven't been received yet. CheckingEndpoint is a temporary state that usually occurs immediately after adding or enabling an endpoint in the profile. An endpoint in this state is included in DNS responses and can receive traffic.
User will connect to site2.contoso.com, not to site2.uk.contoso.com

Box 3: No -
VM3, which is hosting site2.contoso.com, is located in in East US. The VM1 endpoint status is CheckingEndpoint, which is OK (see above).
User will connect to site2.contoso.com, not to site2.japan.contoso.com
Reference:
https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-monitoring

You have an Azure application gateway configured for a single website that is available at https://www.contoso.com.
The application gateway contains one backend pool and one rule. The backend pool contains two backend servers. Each backend server has an additional website that is available on port 8080.
You need to ensure that if port 8080 is unavailable on a backend server, all the traffic for https://www.contoso.com is redirected to the other backend server.
What should you do?

You have an Azure subscription that contains the following resources:

•A virtual network named Vnet1
•Two subnets named subnet1 and AzureFirewallSubnet
•A public Azure Firewall named FW1
•A route table named RT1 that is associated to Subnet1
•A rule routing of 0.0.0.0/0 to FW1 in RT1

After deploying 10 servers that run Windows Server to Subnet1, you discover that none of the virtual machines were activated.

You need to ensure that the virtual machines can be activated.

What should you do?
