You have an on-premises network.

You have an Azure subscription that includes a virtual network named VNet1 and a private Azure Kubernetes Service (AKS) cluster named AKS1. VNet1 is connected to your on-premises environment via an Azure ExpressRoute circuit. AKS1 is connected to VNet1.

You need to implement an off-cluster ingress controller for AKS1. The solution must provide connectivity from the on-premises environment to containerized workloads hosted on AKS1.

Which Azure service should you use?

HOTSPOT
-

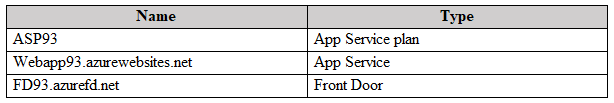

You are planning an Azure Front Door deployment that will contain the resources shown in the following table.



Users will connect to the App Service through Front Door by using a URL of https://www.fabrikam.com.

You obtain a certificate for the host name of www.fabrikam.com.

You need to configure a DNS record for www.fabrikam.com and upload the certificate to Azure.

What should you do? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

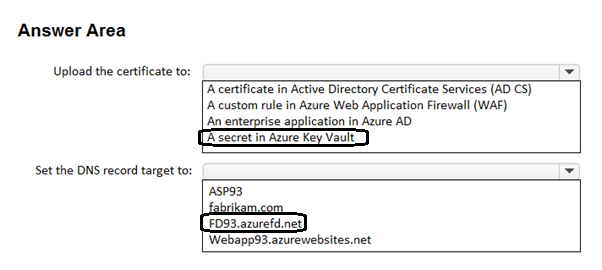

Correct Answer:

HOTSPOT
-

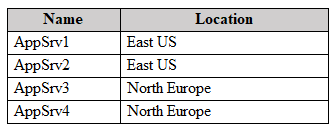

You have an Azure subscription that contains an app named App1. App1 is hosted on the Azure App Service instances shown in the following table.



You need to implement Azure Traffic Manager to meet the following requirements:

•App1 traffic must be assigned equally to each App Service instance in each Azure region.
•App1 traffic from North Europe must be routed to the App1 instances in the North Europe region.
•App1 traffic from North America must be routed to the App1 instances in the East US Azure region.
•If an App Service instance fails, all the traffic for that instance must be routed to the remaining instances in the same region.

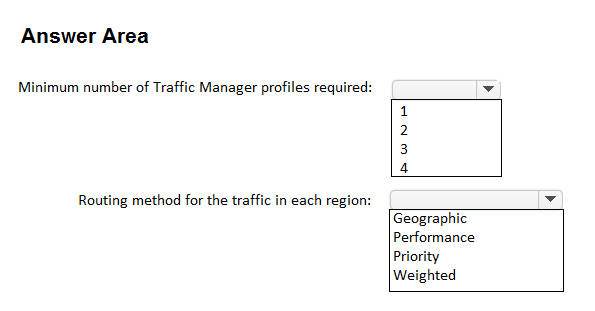

How should you configure the Traffic Manager profiles? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

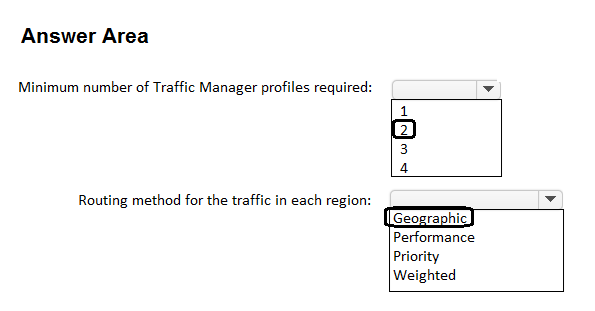

Correct Answer:

You have an Azure subscription that contains the Azure App Service web apps shown in the following table.



You need to deploy Azure Traffic Manager. The solution must meet the following requirements:

•Traffic to https://www.fabrikam.com must be directed to App1eu.
•If App1eu becomes unresponsive, all the traffic to https://www.fabrikam.com must be directed to App1us.

You need to implement Traffic Manager to meet the requirements.

Which two resources should you create? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

HOTSPOT
-

You have an Azure subscription that contains an app named App1. App1 is deployed to the Azure App Service apps shown in the following table.



You need to publish App1 by using Azure Front Door. The solution must ensure that all the requests to App1 are load balanced between all the available worker instances.

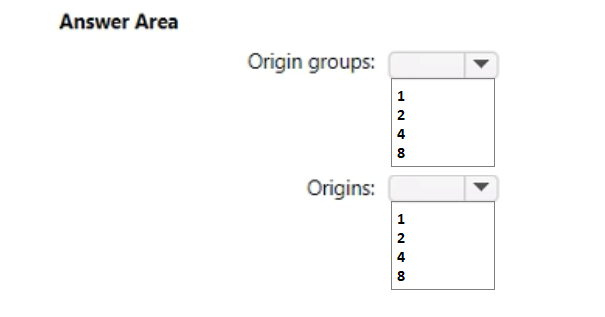

What is the minimum number of origin groups and origins that you should configure? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

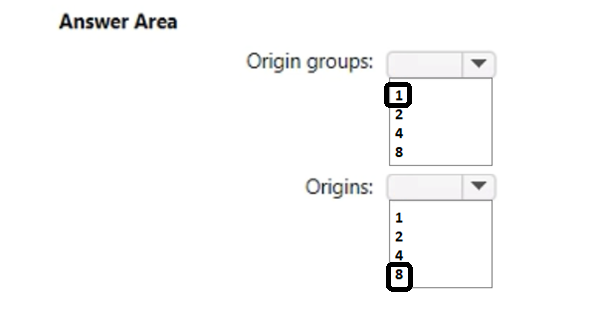

Correct Answer:
