HOTSPOT -

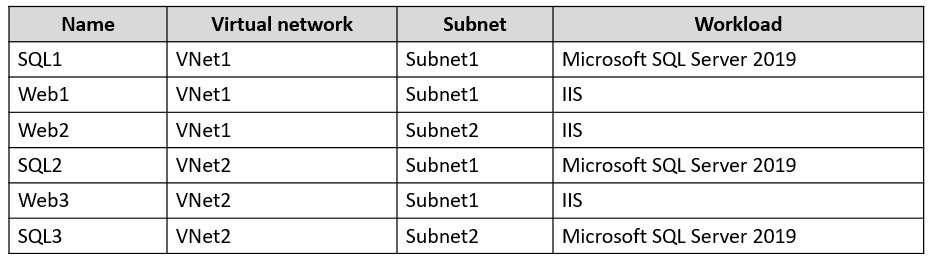

You have an Azure subscription that contains the virtual machines shown in the following table.

VNet1 and VNet2 are NOT connected to each other.
You need to block traffic from SQL Server 2019 to IIS by using application security groups. The solution must minimize administrative effort.

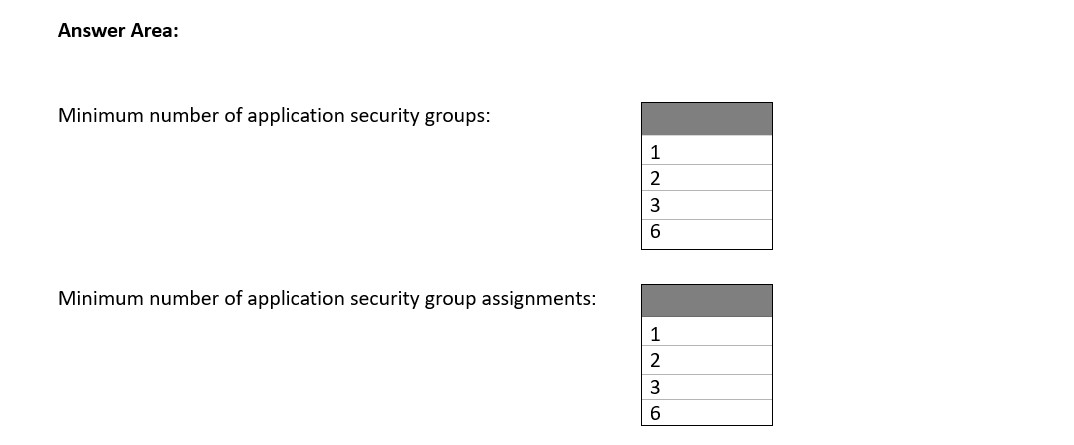

How should you configure the application security groups? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

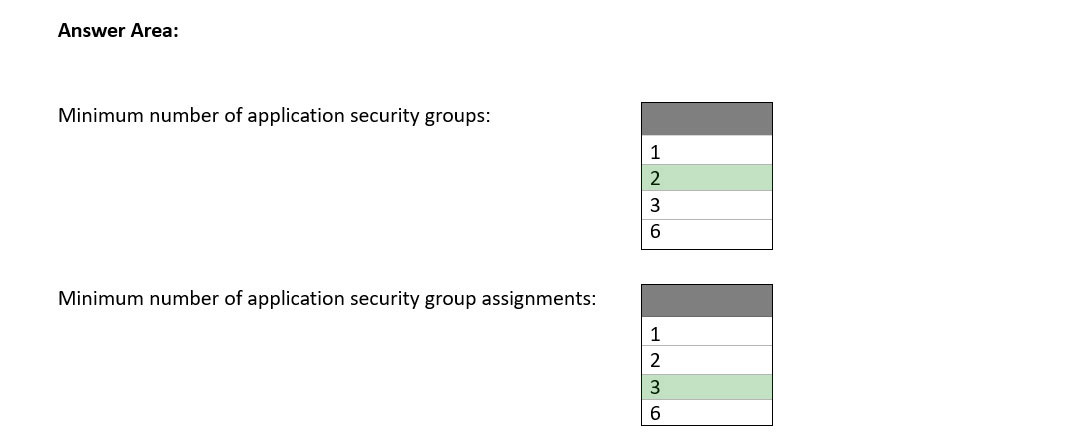

Correct Answer:

Box 1: 2 -
All network interfaces assigned to an application security group have to exist in the same virtual network that the first network interface assigned to the application security group is in.
We need one application security group for each of the two virtual networks.

Box 2: 3 -
One network assignment in VNet1. Two network assignments in VNET2.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/application-security-groups

HOTSPOT -

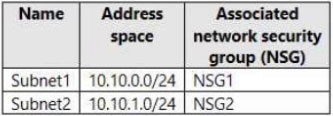

You have an Azure virtual network that contains the subnets shown in the following table.

In.NSG1, you create inbound rules as shown in the following table.

NSG2 has only the default rules configured.
You have the Azure virtual machines shown in the following table.

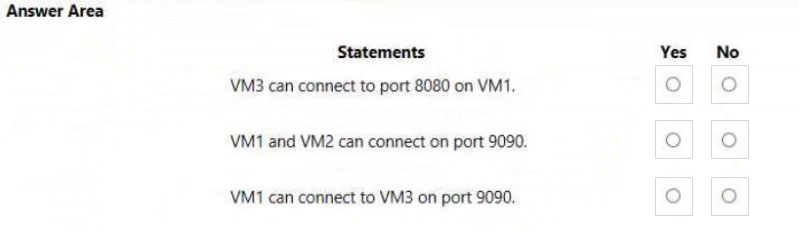

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

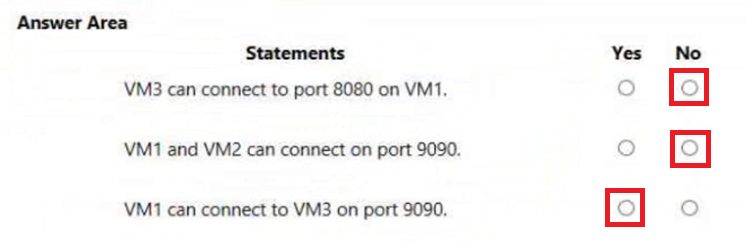

Correct Answer:

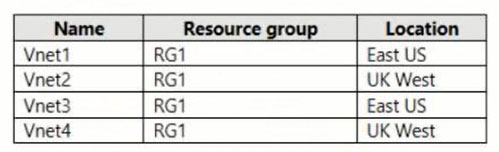

You have the Azure virtual networks shown in the following table.

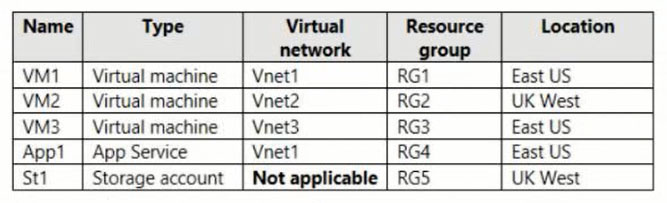

You have the Azure resources shown in the following table.

You need to check latency between the resources by using connection monitors in Azure Network Watcher.
What is the minimum number of connection monitors that you must create?

You have an Azure subscription that contains a user named Admin1 and a resource group named RG1.

RG1 contains an Azure Network Watcher instance named NW1.

You need to ensure that Admin1 can place a lock on NW1. The solution must use the principle of least privilege.

Which role should you assign to Admin1?

You have a network security group named NSG1.

You need to enable network security group (NS) flow logs for NSG1. The solution must support retention policies.

What should you create first?
