Litware, Inc. is a financial company that has a main datacenter in Boston and 20 branch offices across the United States. Users have Android, iOS, and Windows 10 devices.


Existing Environment -


Hybrid Environment -

The on-premises network contains an Active Directory forest named litwareinc.com that syncs to an Azure Active Directory (Azure AD) tenant named litwareinc.com by using Azure AD Connect.

All offices connect to a virtual network named Vnet1 by using a Site-to-Site VPN connection.


Azure Environment -

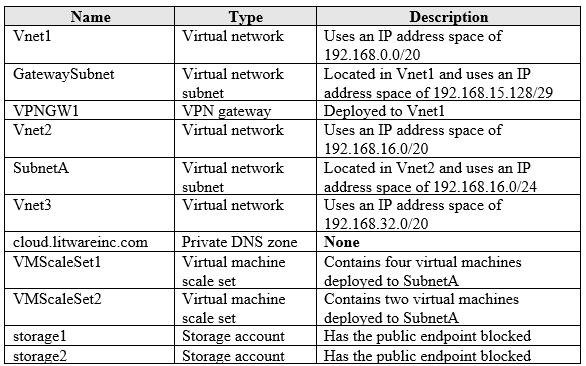

Litware has an Azure subscription named Sub1 that is linked to the litwareinc.com Azure AD tenant. Sub1 contains resources in the East US Azure region as shown in the following table.

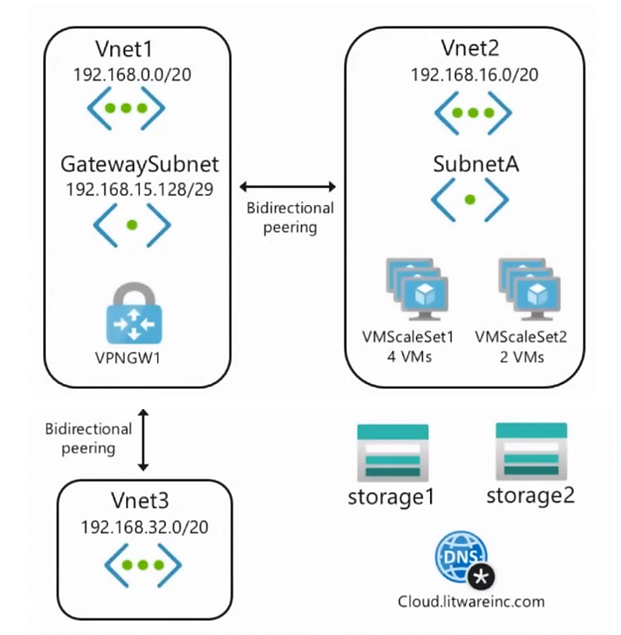

A diagram of the resource in the East US Azure region is shown in the Azure Network Diagram exhibit.

There is bidirectional peering between Vnet1 and Vnet2. There is bidirectional peering between Vnet1 and Vnet3. Currently, Vnet2 and Vnet3 cannot communicate directly.


Azure Network Diagram -




Requirements -


Business Requirements -

Litware wants to minimize costs whenever possible, as long as all other requirements are met.


Virtual Networking Requirements -

Litware identifies the following virtual networking requirements:

•Direct the default route of 0.0.0.0/0 on Vnet2 and Vnet3 to the Boston datacenter over an ExpressRoute circuit.
•Ensure that the records in the cloud.litwareinc.com can be resolved from the on-premises locations.
•Automatically register the DNS names of Azure virtual machines to the cloud.litwareinc.com zone.
•Minimize the size of the subnets allocated to platform-managed services.
•Allow traffic from VMScaleSet1 to VMScaleSet2 on the TCP port 443 only.


Hybrid Networking Requirements -

Litware identifies the following hybrid networking requirements:

•Users must be able to connect to Vnet1 by using a Point-to-Site (P2S) VPN when working remotely. Connections must be authenticated by Azure AD.
•Latency of the traffic between the Boston datacenter and all the virtual networks must be minimized.
•The Boston datacenter must connect to the Azure virtual networks by using an ExpressRoute FastPath connection.
•Traffic between Vnet2 and Vnet3 must be routed through Vnet1.


PaaS Networking Requirements -

Litware identifies the following networking requirements for platform as a service (PaaS):

•The storage1 account must be accessible from all on-premises locations without exposing the public endpoint of storage1.
•The storage2 account must be accessible from Vnet2 and Vnet3 without exposing the public endpoint of storage2.


You need to connect Vnet2 and Vnet3. The solution must meet the virtual networking requirements and the business requirements.

Which two actions should you include in the solution? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

HOTSPOT
-

You have an Azure subscription.

You plan to use Azure Virtual WAN.

You need to deploy a virtual WAN hub that meets the following requirements:

•Supports 4 Gbps of Site-to-Site (S2S) VPN traffic
•Supports 8 Gbps of ExpressRoute traffic
•Minimizes costs

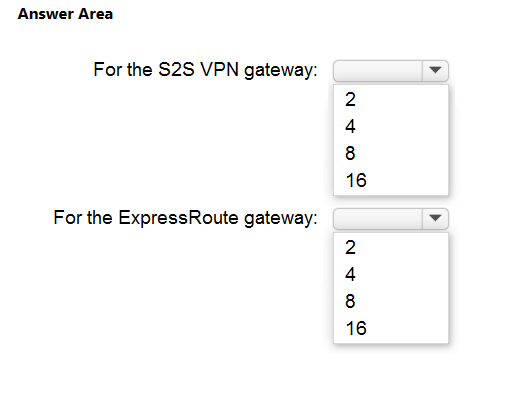

How many scale units should you configure? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

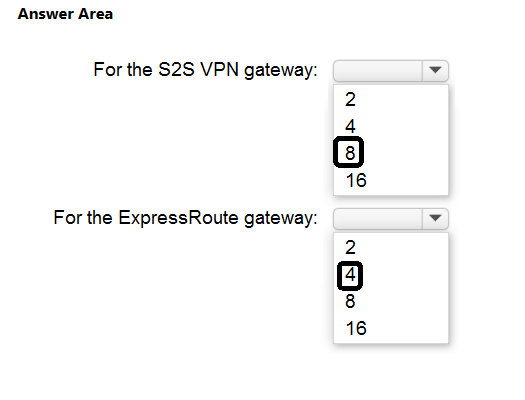

Correct Answer:

DRAG DROP
-

You have an on-premises network.

You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains an ExpressRoute gateway.

You need to connect VNet1 to the on-premises network by using an ExpressRoute circuit.

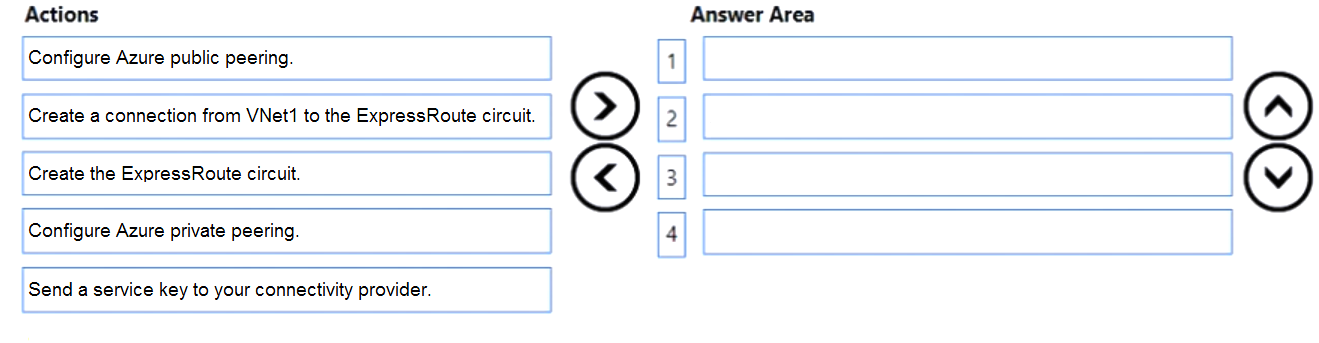

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Correct Answer:

You have three on-premises networks.

You have an Azure subscription that contains a Basic Azure virtual WAN. The virtual WAN contains a single virtual hub and a virtual network gateway that is limited to a throughput of 1 Gbps.

The on-premises networks connect to the virtual WAN by using Site-to-Site (S2S) VPN connections.

You need to increase the throughput of the virtual WAN to 3 Gbps. The solution must minimize administrative effort.

What should you do?

You have 10 on-premises networks that are connected by using a 3rd party Software Defined Wide Area Network (SD-WAN) solution. You have an Azure subscription that contains five virtual networks.

You plan to connect the Azure virtual networks and the on-premises networks by using an Azure Virtual WAN with a single virtual WAN hub.

You need to ensure that the Azure Virtual WAN can act as a node in the 3rd party SD-WAN solution.

What should you include in the solution?
