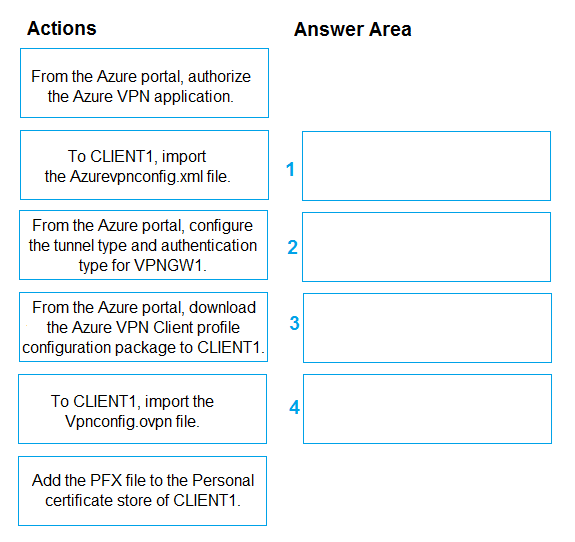

DRAG DROP
-

You have a computer named CLIENT1 that runs Windows 11 and has the Azure VPN Client installed.

You have an Azure virtual network gateway named VPNGW1.

You need to ensure that you can connect CLIENT1 to VPNGW1. The solution must support Microsoft Entra authentication.

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer are and arrange them in the correct order.

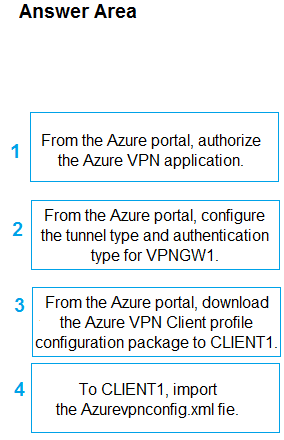

Correct Answer:

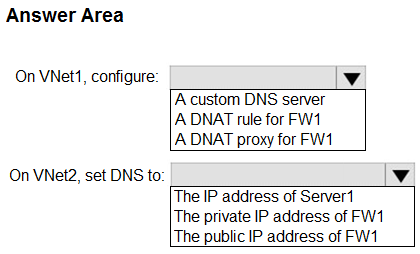

HOTSPOT
-

You have an on-premises server named Server1 that runs Windows Server and has the DNS Server role installed.

You have an Azure subscription that contains two virtual networks named VNet1 and VNet2. VNet1 contains an Azure Firewall instance named FW1. VNet1 peers with VNet2.

The on-premises network is connected to VNet1 by using ExpressRoute. The on-premises network is inaccessible from VNet2.

You need to ensure that virtual machines connected to VNet2 use Server1 to perform name resolution. The solution must minimize administrative effort.

What should you do? To answer, select the appropriate options in the answer area.

NOTE: Each correct answer is worth one point.

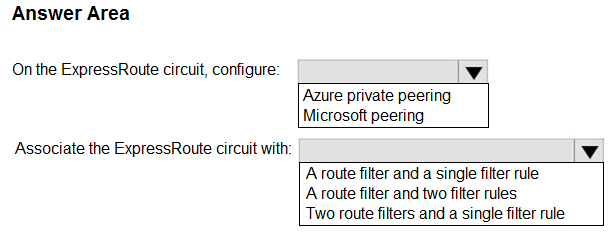

HOTSPOT
-

You create an ExpressRoute circuit named ERC1 that is enabled by your connectivity provider.

You need to ensure that the routes for Azure Backup and Azure Cosmos DB are advertised to the on-premises network via ECR1.

The solution must minimize administrative effort.

What should you do? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

HOTSPOT
-

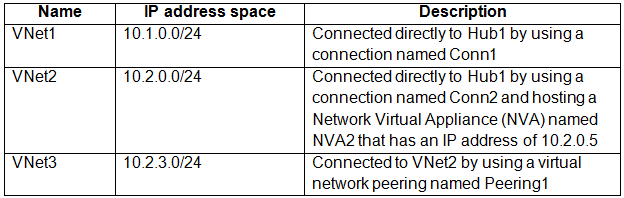

You plan to implement an Azure Virtual WAN named VWAN1 that will contain a hub named Hub1. VWAN1 will include the virtual networks shown in the following table.



You need to ensure that hosts connected to VNet1 can communicate with hosts connected to VNet3.

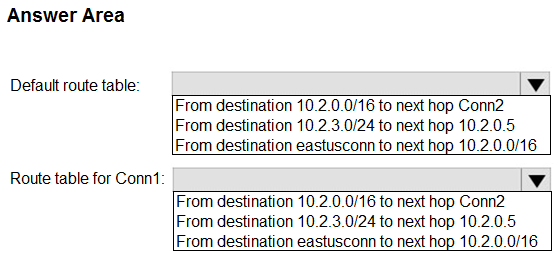

How should you configure the routing tables for VWAN1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

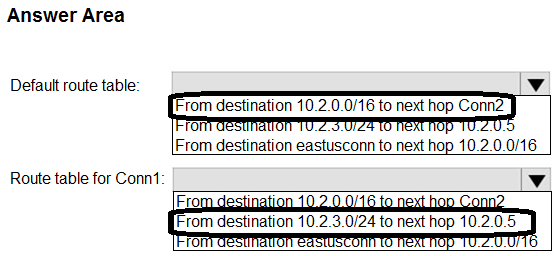

Correct Answer:

HOTSPOT
-

You have 50 on-premises networks. Each network contains a server that runs Windows Server.

You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains a database server named DB1.

You plan to deploy an app named App1 that will be hosted on the on-premises servers and will connect to DB1 by using Azure Network Adapter.

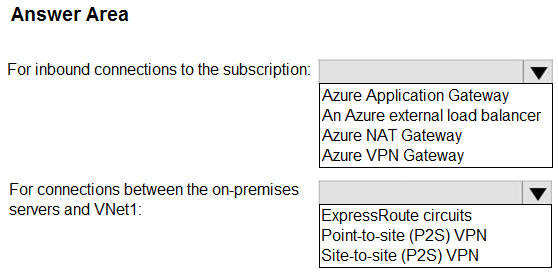

What should you use to support the Azure Network Adapter connections to VNet1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

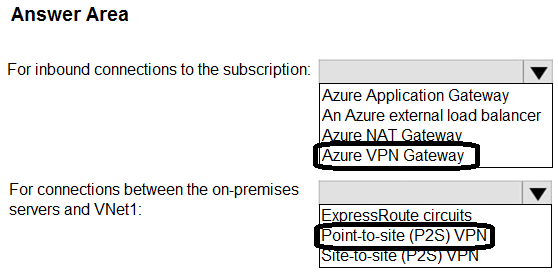

Correct Answer:
