HOTSPOT -

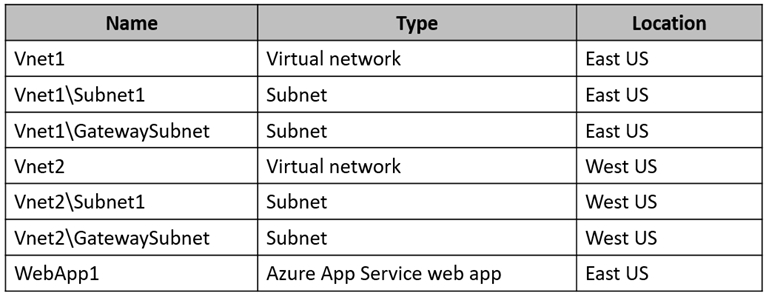

You have the Azure resources shown in the following table.

WebApp1 uses the Standard pricing tier.
You need to ensure that WebApp1 can access the virtual machines deployed to Vnet1\Subnet1 and Vnet2\Subnet1. The solution must minimize costs.

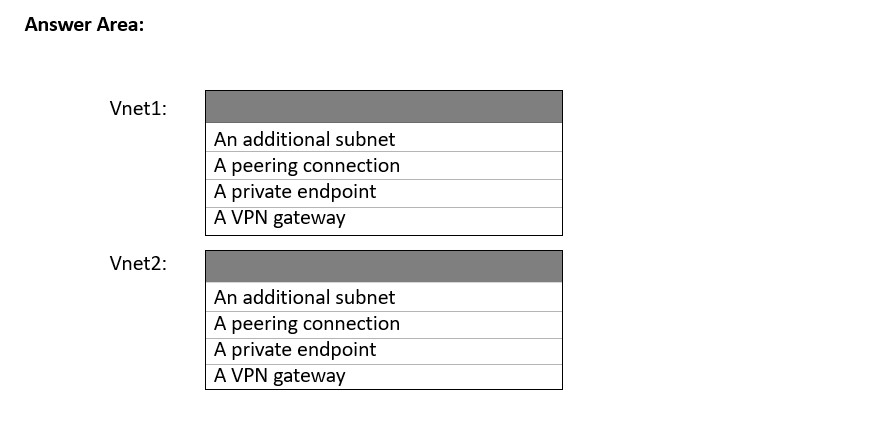

What should you create in each virtual network? To answer, select the appropriate options in the answer area.
Hot Area:

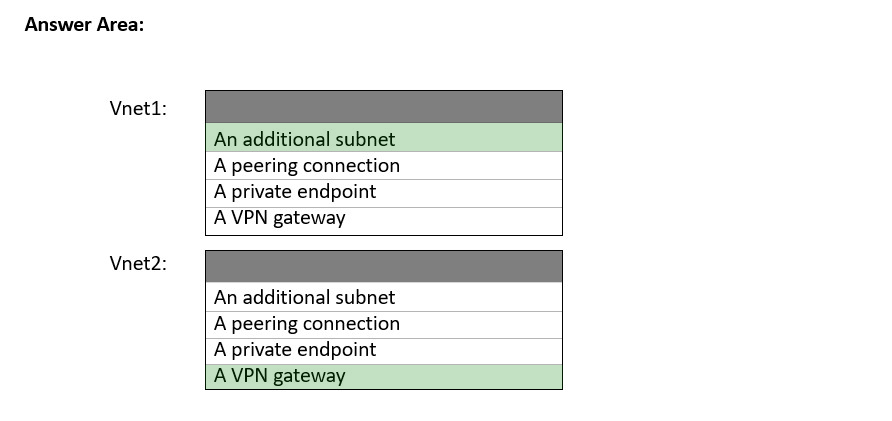

Correct Answer:

Box 1: An additional subnet -
Regional virtual network integration: When you connect to virtual networks in the same region, you must have a dedicated subnet in the virtual network you're integrating with.

Box 2: A VPN gateway -
Gateway-required virtual network integration: When you connect directly to virtual networks in other regions or to a classic virtual network in the same region, you need an Azure Virtual Network gateway created in the target virtual network.
Note: If your app is in an App Service Environment, it's already in a virtual network and doesn't require use of the VNet integration feature to reach resources in the same virtual network.
Reference:
https://docs.microsoft.com/en-us/azure/app-service/overview-vnet-integration

HOTSPOT -

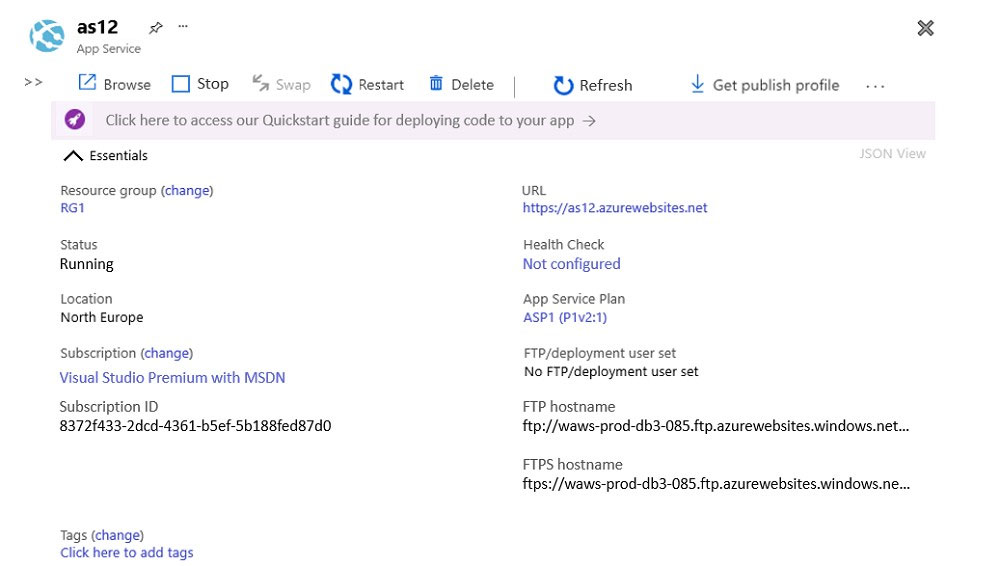

You have the Azure App Service app shown in the App Service exhibit.

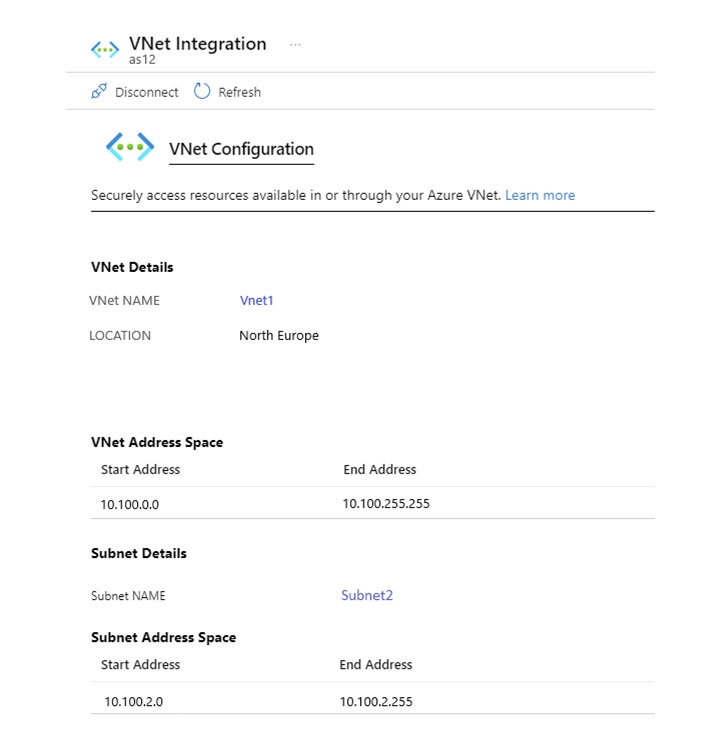

The VNet Integration settings for as12 are configured as shown in the Vnet Integration exhibit.

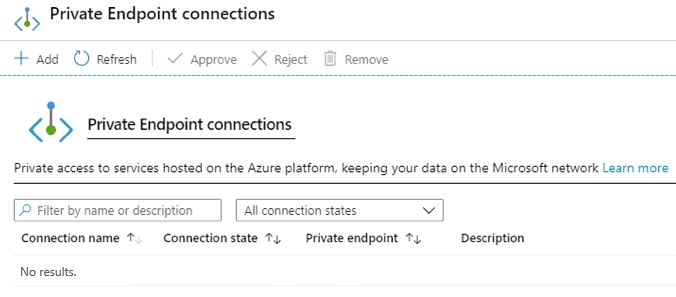

The Private Endpoint connections settings for as12 are configured as shown in the Private Endpoint connections exhibit.

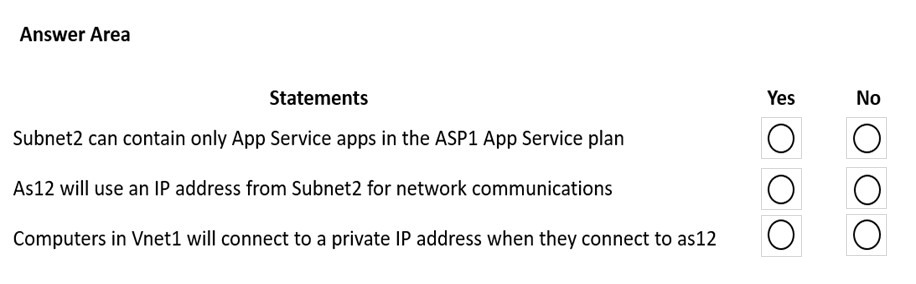

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

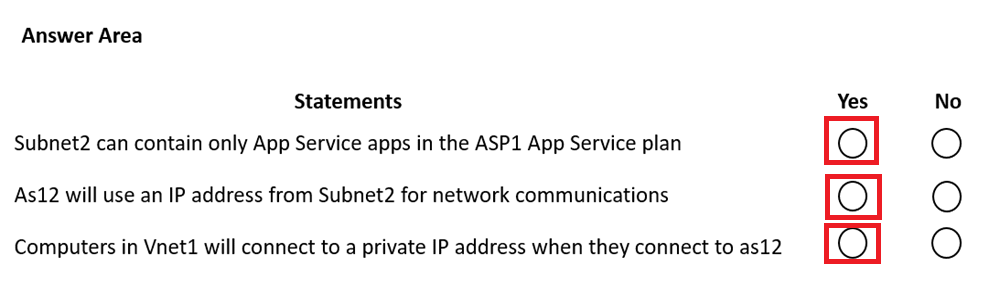

Correct Answer:

You have a hub-and-spoke topology. The topology includes multiple on-premises locations that connect to a hub virtual network in Azure via ExpressRoute circuits.
You have an Azure Application Gateway named GW1 that provides a single point of ingress from the internet.
You plan to migrate the hub-and-spoke topology to Azure Virtual WAN.
You need to identify which changes must be applied to the existing topology. The solution must ensure that you maintain a single point of ingress from the internet.
Which three changes should you include in the solution? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

You have an application named App1 that listens for incoming requests on a preconfigured group of 50 TCP ports and UDP ports.
You install App1 on 10 Azure virtual machines.
You need to implement load balancing for App1 across all the virtual machines. The solution must minimize the number of load balancing rules.
What should you include in the solution?

DRAG DROP -
You register a DNS domain with a third-party registrar.
You need to host the DNS zone on Azure.

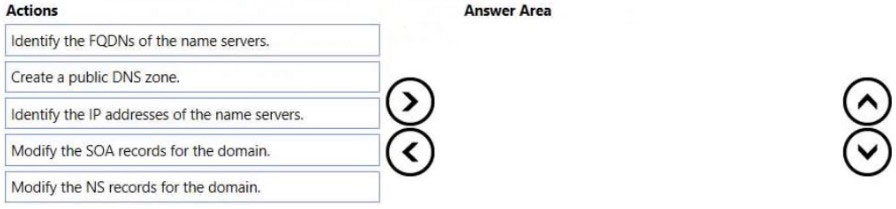

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

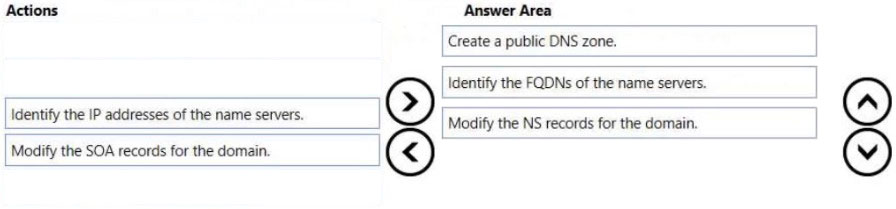

Correct Answer:

Step 1: Create a public DNS zone.

Create a DNS zone -

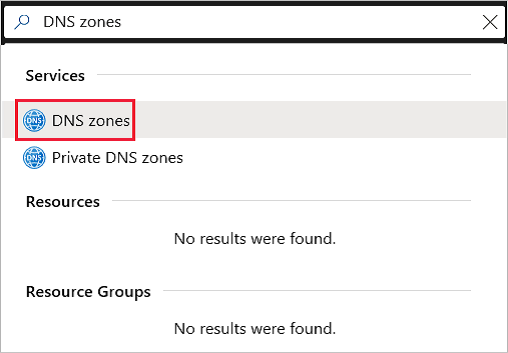

1. Go to the Azure portal to create a DNS zone. Search for and select DNS zones.

2. Select Create DNS zone.
3. On the Create DNS zone page, enter the following values, and then select Create.
Step 2: Identify the FQDNs of the name servers.
Retrieve name servers.
Before you can delegate your DNS zone to Azure DNS, you need to know the name servers for your zone. Azure DNS gives name servers from a pool each time a zone is created.
With the DNS zone created, in the Azure portal Favorites pane, select All resources. On the All resources page, select your DNS zone. If the subscription you've selected already has several resources in it, you can enter your domain name in the Filter by name box to easily access the application gateway.
Retrieve the name servers from the DNS zone page. In this example, the zone contoso.net has been assigned name servers ns1-01.azure-dns.com, ns2-
01.azure-dns.net, *ns3-01.azure-dns.org, and ns4-01.azure-dns.info:

Azure DNS automatically creates authoritative NS records in your zone for the assigned name servers.
Step 3: Modify the NS records for the domain.

Delegate the domain -
Once the DNS zone gets created and you have the name servers, you'll need to update the parent domain with the Azure DNS name servers.
Each registrar has its own DNS management tools to change the name server records for a domain.
1. In the registrar's DNS management page, edit the NS records and replace the NS records with the Azure DNS name servers.
2. When you delegate a domain to Azure DNS, you must use the name servers that Azure DNS provides. Use all four name servers, regardless of the name of your domain. Domain delegation doesn't require a name server to use the same top-level domain as your domain.
Reference:
https://docs.microsoft.com/en-us/azure/dns/dns-delegate-domain-azure-dns
