DRAG DROP
-

You have a DNS domain named contoso.com that is hosted by a third-party domain name registrar.

You have an Azure subscription.

You need to ensure that all DNS queries for the contoso.com domain are resolved by using Azure DNS.

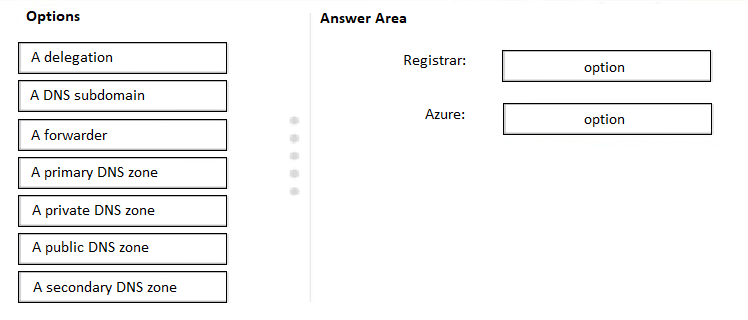

What should you create in the registrar, and what should you create in Azure? To answer, drag the appropriate options to the correct targets. Each option may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

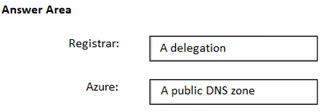

Correct Answer:

HOTSPOT
-

You have an on-premises network.

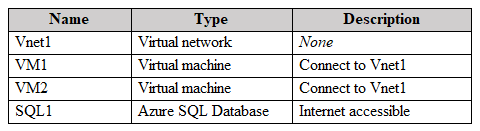

You have an Azure subscription that contains the resources shown in the following table.



You need to implement an ExpressRoute circuit to access the resources in the subscription. The solution must ensure that the on-premises network connects to the Azure resources by using the ExpressRoute circuit.

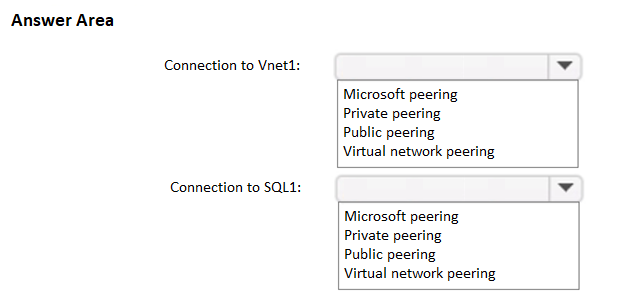

Which type of peering should you use for each connection? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

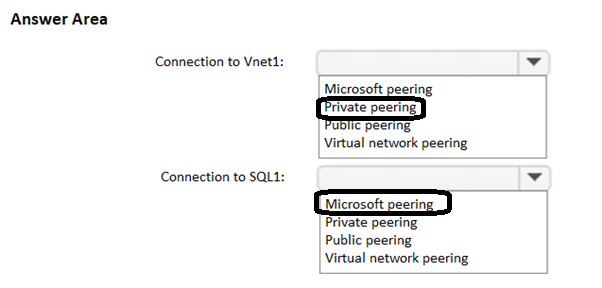

Correct Answer:

You are planning the IP addressing for the subnets in Azure virtual networks.

Which type of resource requires IP addresses in the subnets?

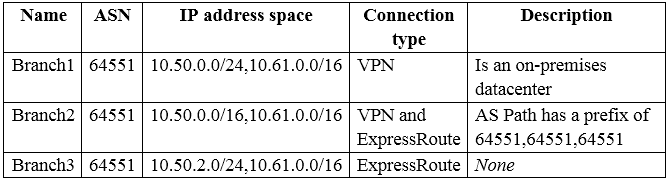

You have the on-premises networks shown in the following table.



You have an Azure subscription that contains an Azure virtual WAN named VWAN1 and a virtual network named VNet1. VWAN is connected to the on-premises networks and VNet1 in a full mesh topology. The virtual hub routing preference for VWAN1 is AS Path.

You need to route traffic from VNet1 to 10.61.1.5.

Which path will be used?

HOTSPOT
-


Case Study
-

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.


To start the case study
-
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Question button to return to the question.


Overview
-

Contoso, Ltd. is a consulting company that has a main office in San Francisco and a branch office in Dallas.

Contoso recently purchased an Azure subscription and is performing its first pilot project in Azure.


Existing Environment
-


Azure Network Infrastructure
-

Contoso has an Azure Active Directory (Azure AD) tenant named contoso.com.

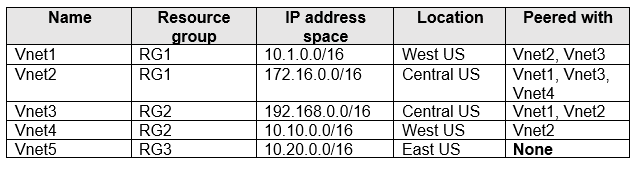

The Azure subscription contains the virtual networks shown in the following table.



Vnet1 contains a virtual network gateway named GW1.


Azure Virtual Machines
-

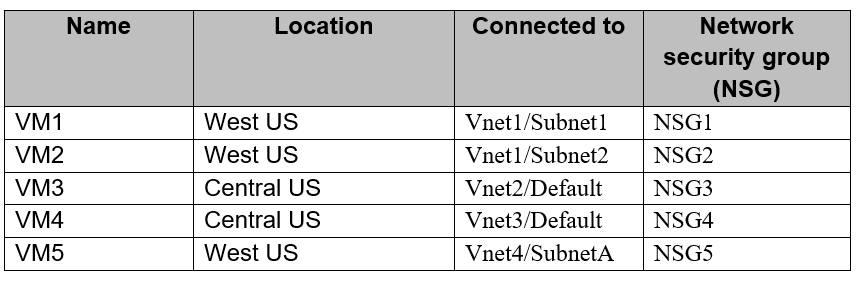

The Azure subscription contains virtual machines that run Windows Server 2019 as shown in the following table.



The NSGs are associated to the network interfaces on the virtual machines. Each NSG has one custom security rule that allows RDP connections from the internet. The firewall on each virtual machine allows ICMP traffic.

An application security group named ASG1 is associated to the network interface of VM1.

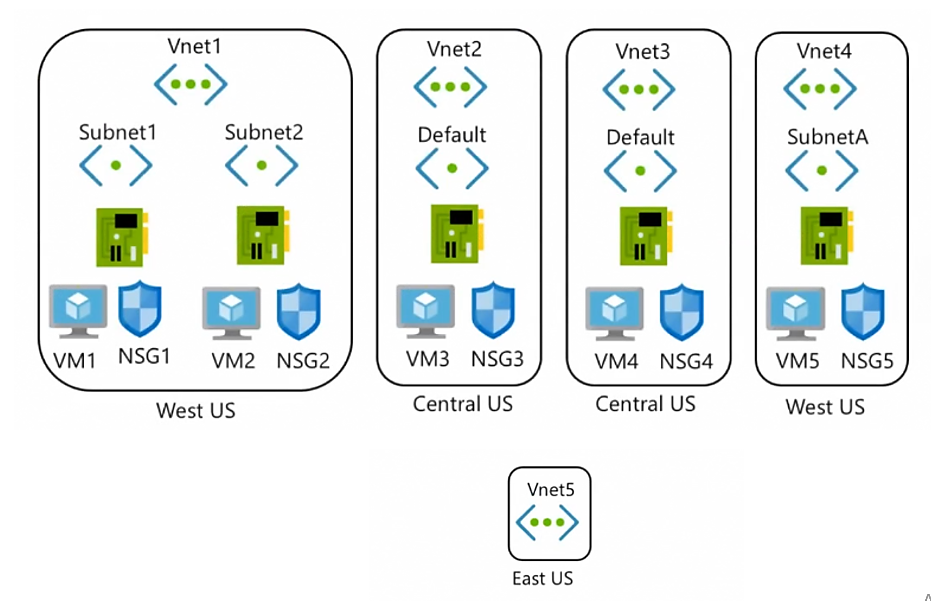

Azure Network Infrastructure Diagram




Azure Private DNS Zones
-

The Azure subscription contains the Azure private DNS zones shown in the following table.



Zone1.contoso.com has the virtual network links shown in the following table.




Other Azure Resources
-

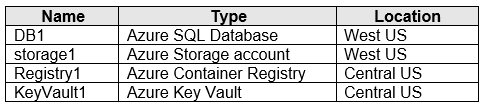

The Azure subscription contains additional resources as shown in the following table.




Requirements
-


Virtual Network Requirements
-

Contoso has the following virtual network requirements:

•Create a virtual network named Vnet6 in West US that will contain the following resources and configurations:
o Two container groups that connect to Vnet6
o Three virtual machines that connect to Vnet6
o Allow VPN connections to be established to Vnet6
o Allow the resources in Vnet6 to access KeyVault1, DB1, and Vnet1 over the Microsoft backbone network.
•The virtual machines in Vnet4 and Vnet5 must be able to communicate over the Microsoft backbone network.
•A virtual machine named VM-Analyze will be deployed to Subnet1. VM-Analyze must inspect the outbound network traffic from Subnet2 to the internet.


Network Security Requirements
-

Contoso has the following network security requirements:

•Configure Azure Active Directory (Azure AD) authentication for Point-to-Site (P2S) VPN users.
•Enable NSG flow logs for NSG3 and NSG4.
•Create an NSG named NSG10 that will be associated to Vnet1/Subnet1 and will have the custom inbound security rules shown in the following table.

•Create an NSG named NSG11 that will be associated to Vnet1/Subnet2 and will have the custom outbound security rules shown in the following table.


You are implementing the virtual network requirements for Vnet6.

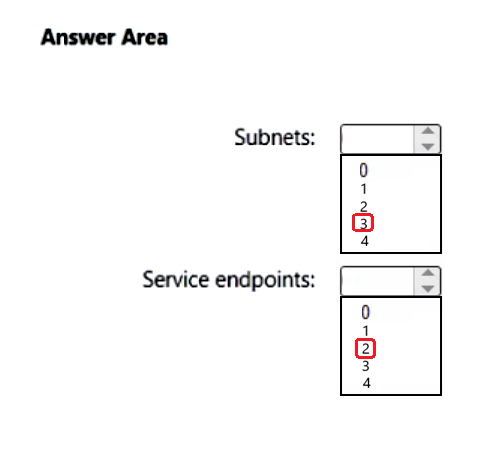

What is the minimum number of subnets and service endpoints you should create? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

Correct Answer:
