You have an Azure subscription.

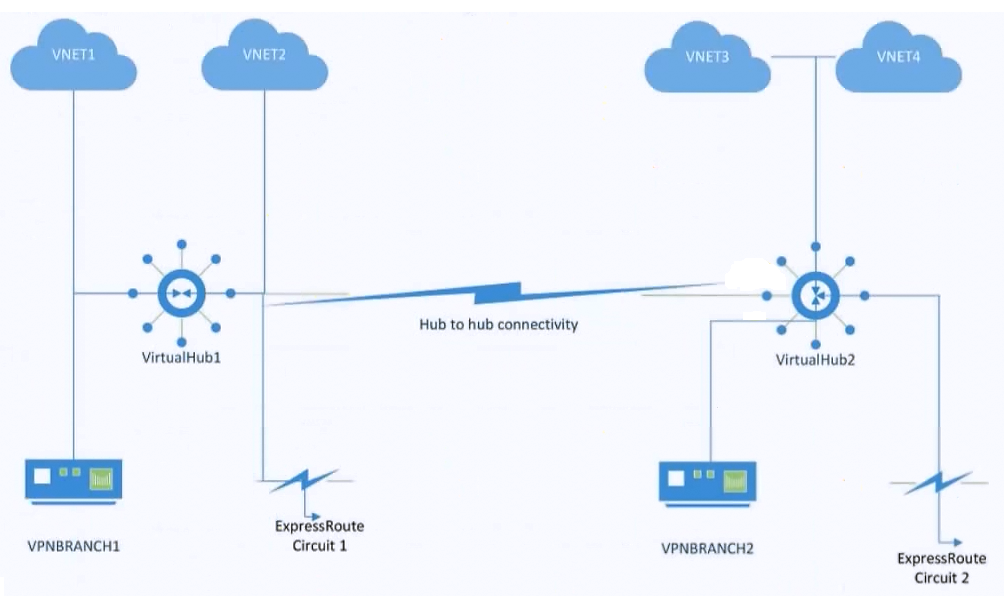

You plan to implement Azure Virtual WAN as shown in the following exhibit.



What is the minimum number of route tables that you should create?

You have an internal Basic Azure Load Balancer named LB1 that has two frontend IP addresses. The backend pool of LB1 contains two Azure virtual machines named VM1 and VM2.

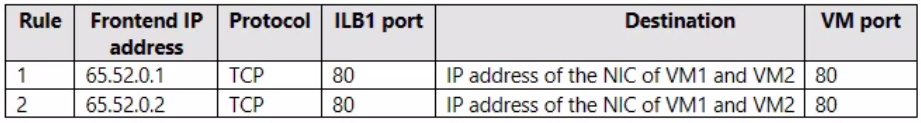

You need to configure the rules on LB1 as shown in the following table.



What should you do for each rule?

Your company has 40 branch offices that are linked by using a Software-Defined Wide Area Network (SD-WAN). The SD-WAN uses BGP.

You have an Azure subscription that contains 20 virtual networks configured as a hub and spoke topology. The topology contains a hub virtual network named Vnet1.

The virtual networks connect to the SD-WAN by using a network virtual appliance (NVA) in Vnet1.

You need to ensure that BGP route advertisements will propagate between the virtual networks and the SD-WAN. The solution must minimize administrative effort.

What should you implement?

HOTSPOT
-

You have an Azure load balancer that has the following configurations:

•Name: LB1
•Location: East US 2
•SKU: Standard
•Private IP address: 10.3.0.7
•Load balancing rule: rule1 (Tcp/80)
•Health probe: probe1 (Http:80)
•NAT rules: 0 inbound

The backend pool of LB1 has the following configurations:

•Name: backend1
•Virtual network: Vnet2
•Backend pool configuration: NIC
•IP version: IPv4
•Virtual machines: VM1, VM2, VM3

You have an Azure virtual machine named VM4 that has the following network configurations:

•Network interface: vm4981
•Virtual network/subnet: Vnet3/Subnet3
•NIC private IP address: 10.4.0.4
•Accelerated networking: Enabled

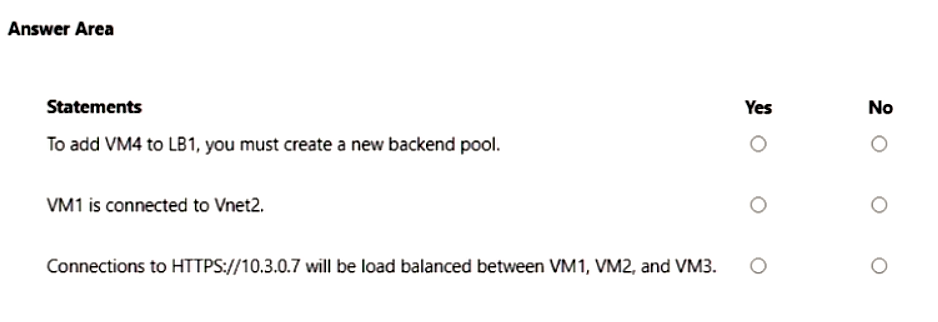

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

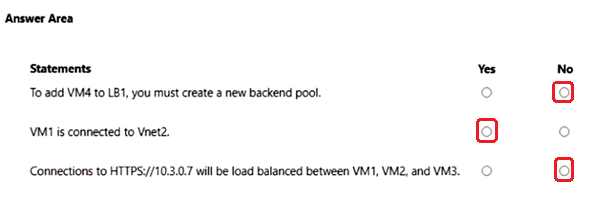

Correct Answer:

DRAG DROP
-

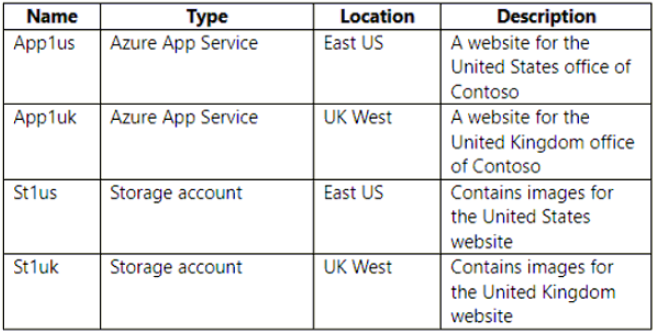

Your company, named Contoso, Ltd., has an Azure subscription that contains the resources shown in the following table.



You plan to deploy Azure Front Door. The solution must meet the following requirements:

•Requests to a URL of https://contoso.azurefd.net/uk must be routed to App1uk.
•Requests to a URL of https://contoso.azurefd.net/us must be routed to App1us.
•Requests to a URL of https://contoso.azurefd.net/images must be routed to the storage account closest to the user.

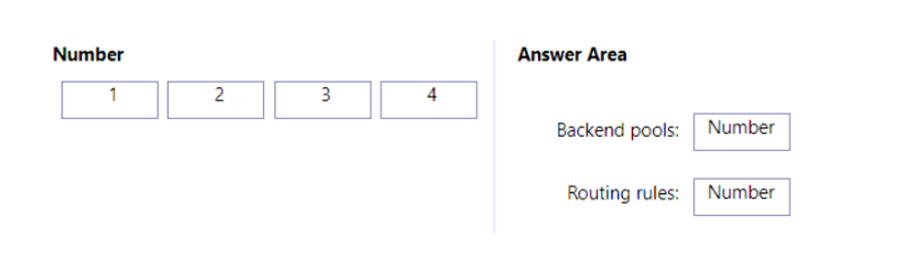

What is the minimum number of backend pools and routing rules you should create? To answer, drag the appropriate number to the correct components. Each number may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

NOTE: Each correct selection is worth one point.

Correct Answer:
