SIMULATION
-




Username and password
-

Use the following login credentials as needed:

To enter your username, place your cursor in the Sign in box and click on the username below.

To enter your password, place your cursor in the Enter password box and click on the password below.

Azure Username: User-12345678@cloudslice.onmicrosoft.com

Azure Password: xxxxxxxxxx
-

If the Azure portal does not load successfully in the browser, press CTRL-K to reload the
portal in a new browser tab.

The following information is for technical support purposes only:

Lab Instance: 12345678
-

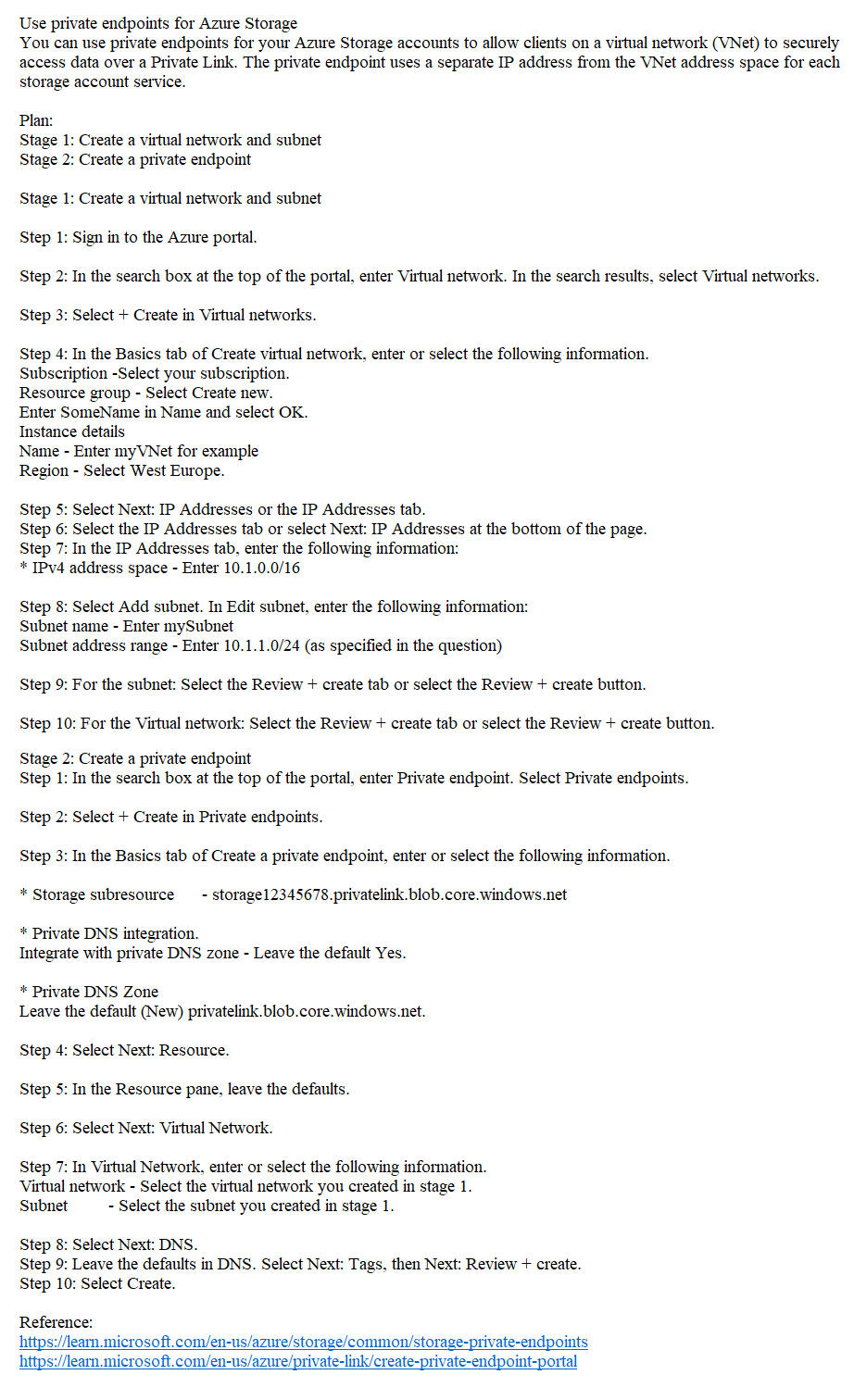

You need to ensure that connections to the storage12345678 storage account can be made by using an IP address in the 10.1.1.0/24 range and the name storage12345678.privatelink.blob.core.windows.net.

To complete this task, sign in to the Azure portal.

Correct Answer:

SIMULATION
-




Username and password
-

Use the following login credentials as needed:

To enter your username, place your cursor in the Sign in box and click on the username below.

To enter your password, place your cursor in the Enter password box and click on the password below.

Azure Username: User-12345678@cloudslice.onmicrosoft.com

Azure Password: xxxxxxxxxx
-

If the Azure portal does not load successfully in the browser, press CTRL-K to reload the
portal in a new browser tab.

The following information is for technical support purposes only:

Lab Instance: 12345678
-

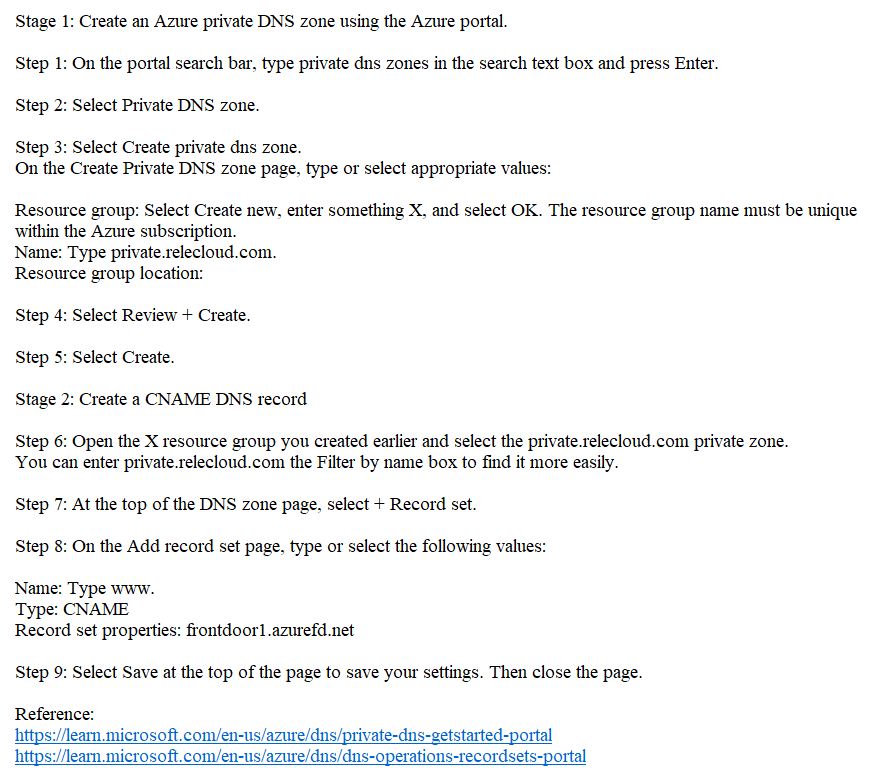

You need to ensure that requests for www.relecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net.

To complete this task, sign in to the Azure portal.

Correct Answer:

SIMULATION
-




Username and password
-

Use the following login credentials as needed:

To enter your username, place your cursor in the Sign in box and click on the username below.

To enter your password, place your cursor in the Enter password box and click on the password below.

Azure Username: User-12345678@cloudslice.onmicrosoft.com

Azure Password: xxxxxxxxxx
-

If the Azure portal does not load successfully in the browser, press CTRL-K to reload the
portal in a new browser tab.

The following information is for technical support purposes only:

Lab Instance: 12345678
-

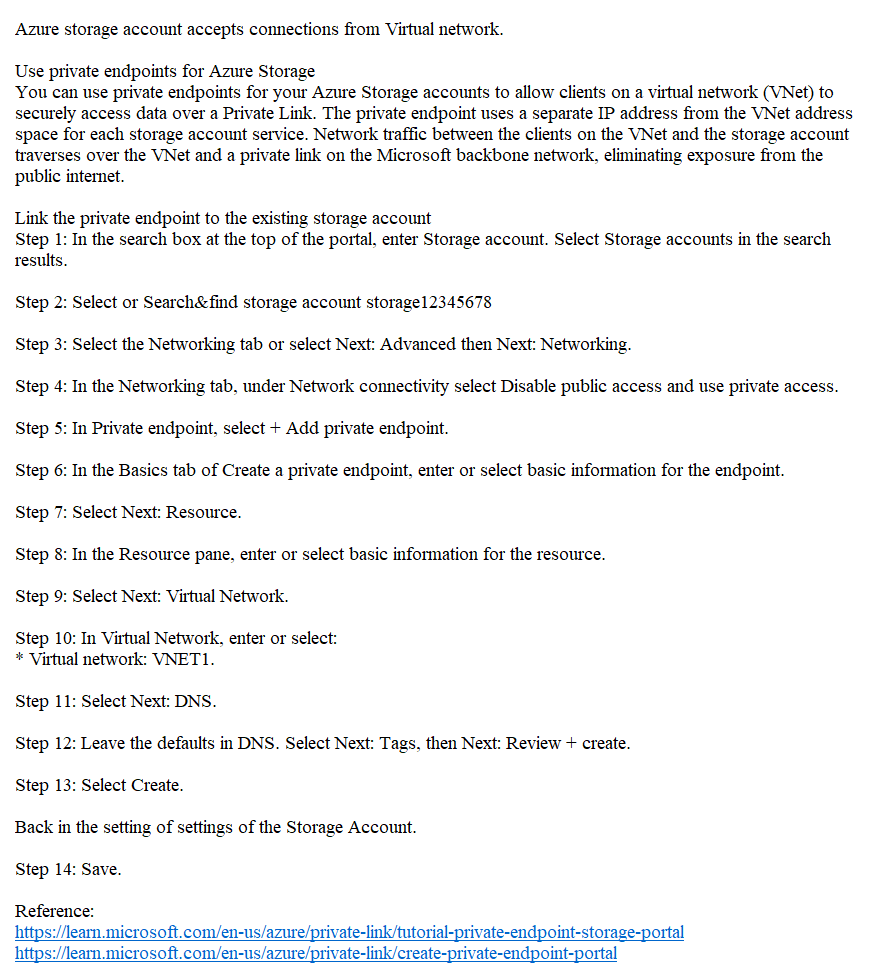

You need to ensure that the storage12345678 storage account will only accept connections from the hosts on VNET1.

To complete this task, sign in to the Azure portal.

Correct Answer:

HOTSPOT
-

You have two Azure subscriptions named Subscription1 and Subscription2.

There are no connections between the virtual networks in the two subscriptions.

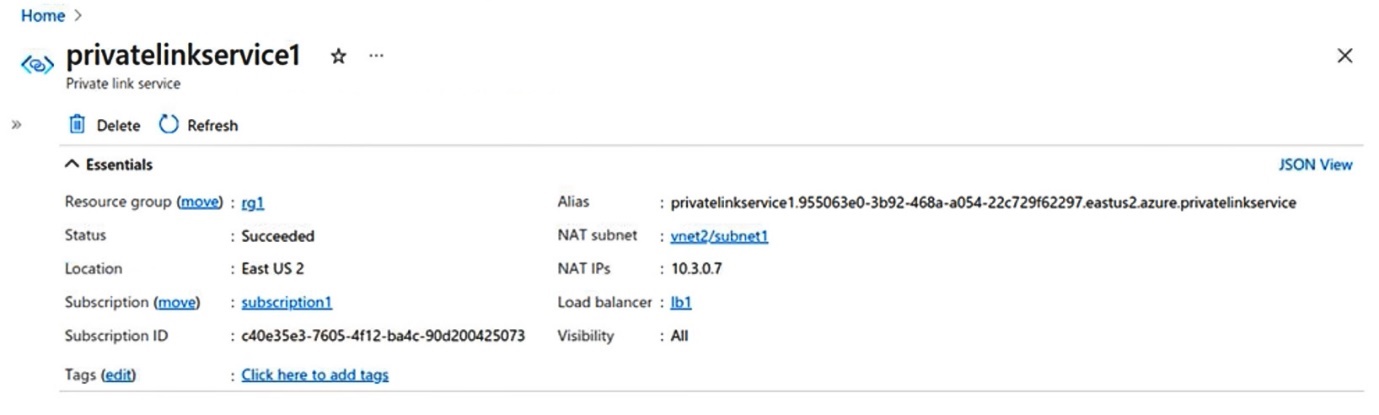

You configure a private link service as shown in the privatelinkservice1 exhibit. (Click the privatelinkservice1 tab.)

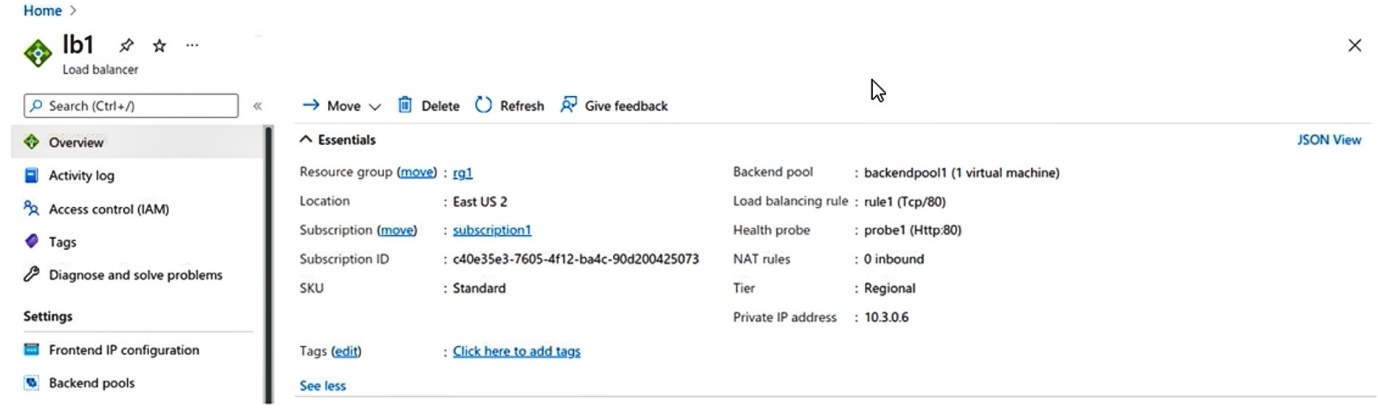

You create a load balancer name in Subscription1 and configure the backend pool shown in the lb1 exhibit. (Click the lb1 tab.)

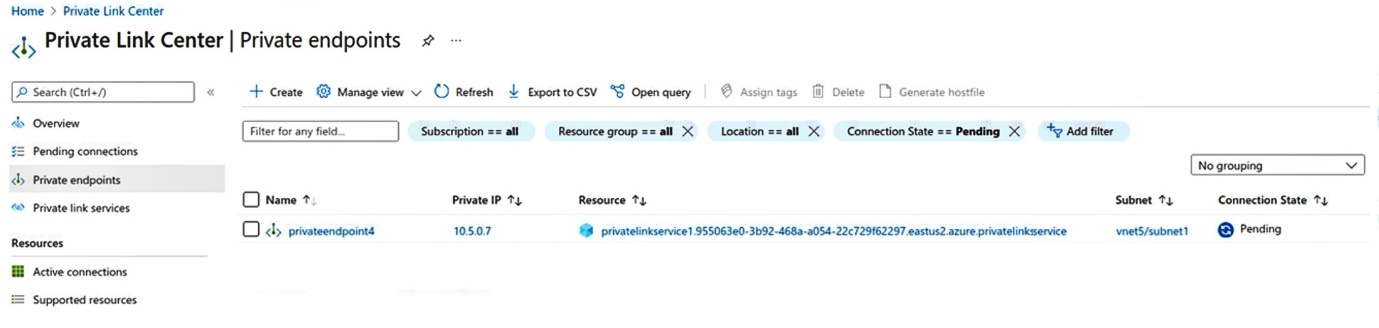

You create a private endpoint in Subscription2 as shown in the privateendpoint4 exhibit. (Click the privateendpoint4 tab.)

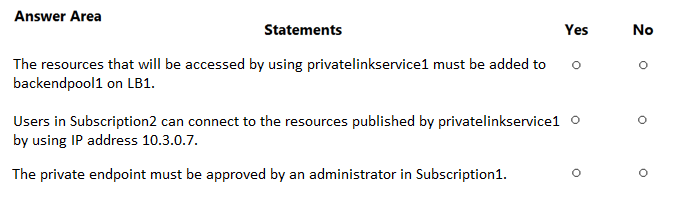

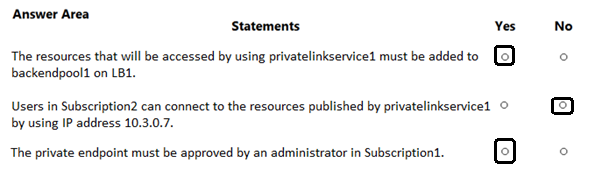

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Correct Answer:

You have an Azure subscription that contains an Azure Front Door named FD1.

You plan to deploy an app named App1 by using Azure App Service. Users will access App1 by using FD1.

You need to provide FD1 with access to App1. The solution must meet the following requirements:

•Ensure that users can only access App1 by using FD1.
•Ensure that users cannot access App1 directly from the internet.

What should you create for App1?
