HOTSPOT
-

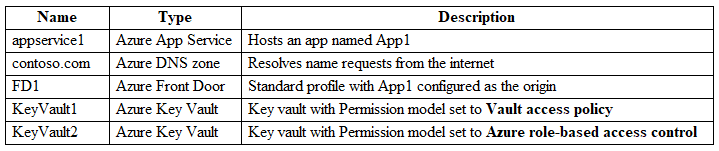

You have an Azure subscription that contains the resources shown in the following table.



You purchase a certificate for app1.contoso.com from a public certification authority (CA) and install the certificate on appservice1.

You need to ensure that App1 can be accessed by using a URL of https://app1.contoso.com. The solution must ensure that all the traffic for App1 is routed via FD1.

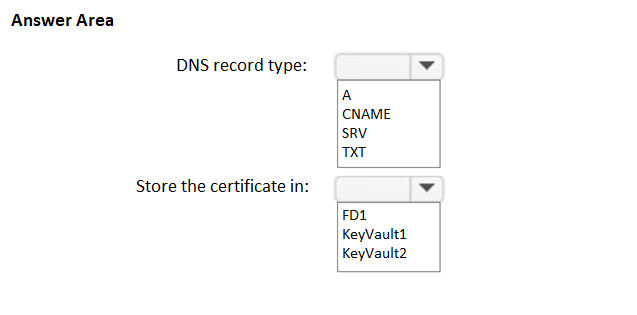

Which type of DNS record should you create, and where should you store the certificate? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

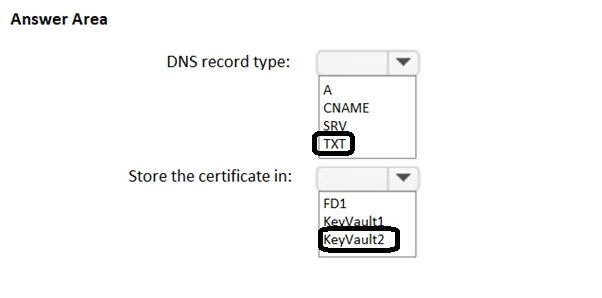

Correct Answer:

You have an Azure subscription that contains four virtual machines. The virtual machines host an app named App1.

You deploy an Azure Standard Load Balancer named LB1 to load balance incoming HTTPS requests to App1.

You need to reduce how long it takes for LB1 to stop sending App1 traffic to failed servers. The solution must minimize administrative effort.

What should you modify?

You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains the following subnets:

•AzureFirewallSubnet
•GatewaySubnet
•Subnet1
•Subnet2
•Subnet3

Subnet2 has a delegation to the Microsoft.Web/serverfarms service.

The subscription contains the resources shown in the following table.



You need to implement an Azure application gateway named AG1 that will be integrated with an Azure Web Application Firewall (WAF). AG1 will be used to publish VMSS1.

To which subnet should you connect AG1?

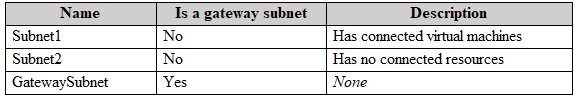

You have an Azure virtual network named VNet1 that contains the subnets shown in the following table.



You need to deploy an Azure application gateway named AppGW1 to VNet1.

To where can you deploy AppGW1?

HOTSPOT
-

You have an Azure subscription that contains multiple virtual machine scale sets and multiple Azure load balancers. The load balancers balance traffic across the scale sets.

You plan to deploy Azure Front Door to load balance traffic across the load balancers.

You need to identify which Front Door SKU to configure, and what to use to route the traffic to the load balancers. The solution must minimize costs.

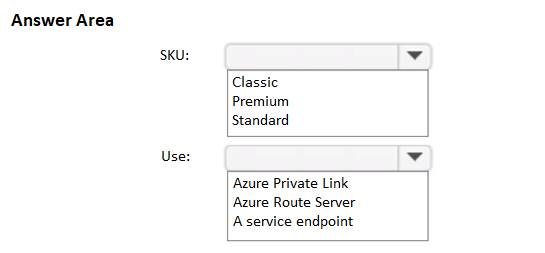

What should you identify? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

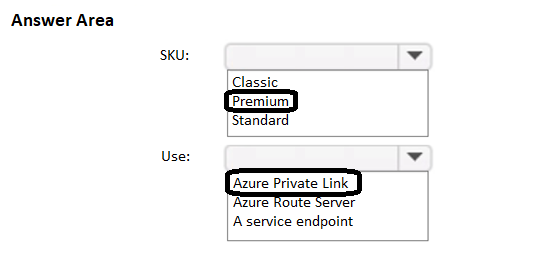

Correct Answer:
